1,2,4,5-Cyclohexanetetracarboxylic Dianhydride - sublimed grade,≥98%(T) , CAS No.2754-41-8

CAS: 2754-41-8 Cat. No.: C153644 Peso molecular: 224.17 Beilstein Registry Number: 19(4)2233 Número EC: 691-475-9

GRADE & PURITY Sublimed grade, ≥98%(T)

Synonyms

AMY11245 | C2419 | 1,2,4,5-Cyclohexanetetracarboxylic Dianhydride (purified by sublimation) | FT-0659314 | AS-31782 | C2919 | A843128 | 1,2,4,5-CyclohexanetetracarboxylicDianhydride | 1H,3H-Benzo[1,2-c:4,5-c']difuran-1,3,5,7-tetrone, hexahydro- | Hexahydr

Storage

Argon charged,Room temperature

Shipped In

Normal

Specifications

Sinónimos

AMY11245 | C2419 | 1, 2, 4, 5-Cyclohexanetetracarboxylic Dianhydride (purified by sublimation) | FT-0659314 | AS-31782 | C2919 | A843128 | 1, 2, 4, 5-CyclohexanetetracarboxylicDianhydride | 1H, 3H-Benzo[1, 2-c:4, 5-c']difuran-1, 3, 5, 7-tetrone, hexahydro- | Hexahydr

Especificaciones y pureza

sublimed grade, ≥98%(T)

Condiciones de almacenamiento de almacenamiento

Argon charged, Room temperature

Enviado en

Normal

Grado

Sublimed grade

Pureza

≥98%(T)

Nombres e identificadores

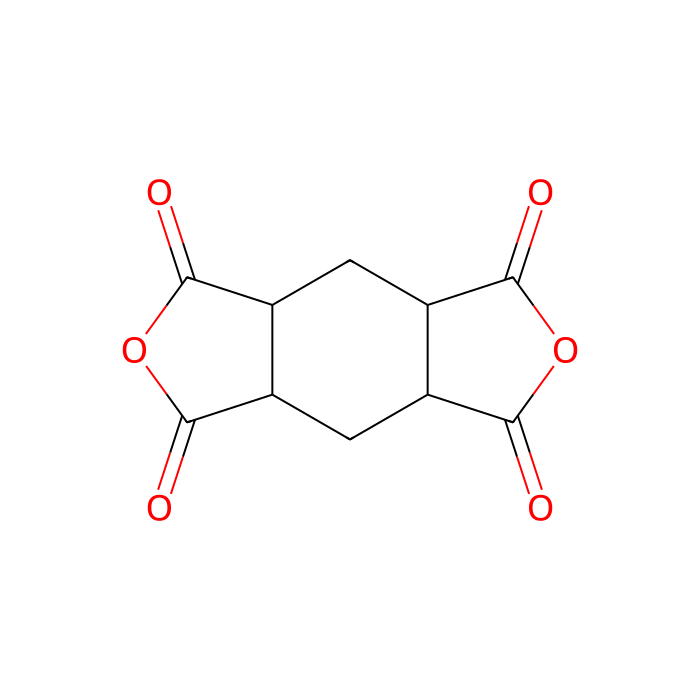

• Sonrisas canónicas: C1C2C(CC3C1C(=O)OC3=O)C(=O)OC2=O
• IUPAC Name: 3a,4,4a,7a,8,8a-hexahydrofuro[3,4-f][2]benzofuran-1,3,5,7-tetrone
• InChIKey: LJMPOXUWPWEILS-UHFFFAOYSA-N
• INCHI: 1S/C10H8O6/c11-7-3-1-4-6(10(14)16-8(4)12)2-5(3)9(13)15-7/h3-6H,1-2H2
• Isómeros SMILES: C1C2C(CC3C1C(=O)OC3=O)C(=O)OC2=O
• Peso molecular: 224.17
• Beilstein: 19(4)2233
• Reaxy-Rn: 262701
• Reaxys-RN_link_address: https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=262701&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organic acids and derivatives
    • Clase Carboxylic acids and derivatives
      • Subclass Tetracarboxylic acids and derivatives

• Kingdom: Organic compounds
• Superclass: Organic acids and derivatives
• Clase: Carboxylic acids and derivatives
• Subclass: Tetracarboxylic acids and derivatives
• Intermediate Tree Nodes: Not available
• Direct Parent: Tetracarboxylic acids and derivatives
• Alternative Parents: Oxolanes Carboxylic acid anhydrides Lactones Oxacyclic compounds Organic oxides Hydrocarbon derivatives Carbonyl compounds
• Molecular Framework: Aliphatic heteropolycyclic compounds
• Substituents: Tetracarboxylic acid or derivatives - Oxolane - Carboxylic acid anhydride - Lactone - Oxacycle - Organoheterocyclic compound - Organic oxygen compound - Organic oxide - Hydrocarbon derivative - Organooxygen compound - Carbonyl group - Aliphatic heteropolycyclic compound
• Descripción: This compound belongs to the class of organic compounds known as tetracarboxylic acids and derivatives. These are carboxylic acids containing exactly four carboxyl groups.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Propiedades químicas y físicas

• Solubilidad: Solubility in Acetone:almost transparency
• Sensibilidad: Moisture sensitive
• Punto de inflamación (°C): 238.6℃
• Punto de ebullición (°C): 517.5±50.0 °C
• Punto de fusión (°C): 240°C(lit.)
• Peso molecular: 224.170 g/mol
• XLogP3: -0.500
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 6
• Rotatable Bond Count: 0
• Exact Mass: 224.032 Da
• Monoisotopic Mass: 224.032 Da
• Topological Polar Surface Area: 86.700 Ų
• Heavy Atom Count: 16
• Formal Charge: 0
• Complexity: 349.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 4
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1
