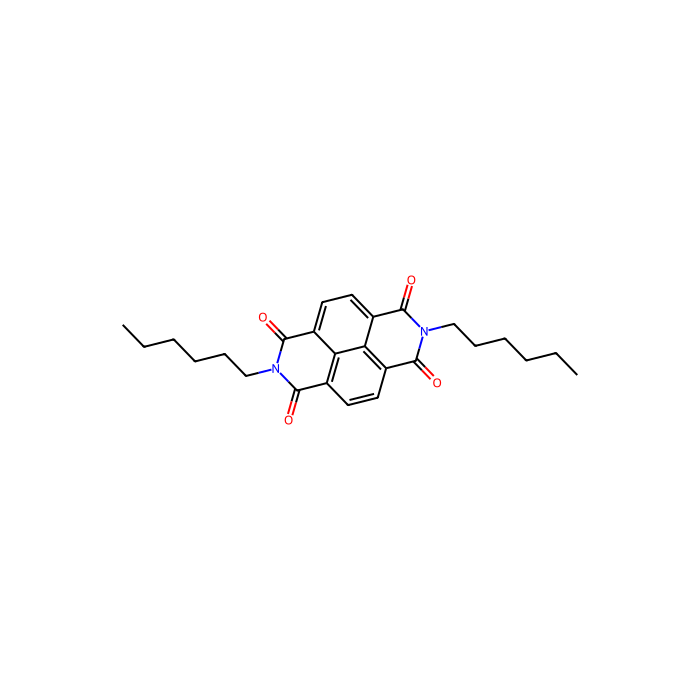

2,7-Dihexylbenzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone - ≥97% , CAS No.23536-15-4

CAS: 23536-15-4 Cat. No.: D432354 Peso molecular: 434.53 Número EC: 803-634-3

GRADE & PURITY ≥97%

Synonyms

6,13-dihexyl-6,13-diazatetracyclo[6.6.2.04,16.011,15]hexadeca-1(15),2,4(16),8,10-pentaene-5,7,12,14-tetrone | 2,7-Dihexylbenzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone | NDI-C6 | 2,7-Dihexylbenzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetrone | SCH

Storage

Store at 2-8°C

Shipped In

Wet ice

Descripción general

General Description

2,7-Dihexylbenzo[ lmn ][3,8]phenanthroline-1,3,6,8(2 H ,7 H )-tetrone is a low-molecular weight perylene derivative which is used as a n-type organic semiconductor in field-effect transistors (FETs). They have high electron mobilities and very good on/off current ratios even in the presence of air. They also possess good mechanical properties and good chemical resistance to a wide range of solvents.

Application

Used as an n-type semiconducting material in organic printed electronics.

Specifications

Sinónimos

6, 13-dihexyl-6, 13-diazatetracyclo[6.6.2.04, 16.011, 15]hexadeca-1(15), 2, 4(16), 8, 10-pentaene-5, 7, 12, 14-tetrone | 2, 7-Dihexylbenzo[lmn][3, 8]phenanthroline-1, 3, 6, 8(2H, 7H)-tetraone | NDI-C6 | 2, 7-Dihexylbenzo[lmn][3, 8]phenanthroline-1, 3, 6, 8(2H, 7H)-tetrone | SCH

Especificaciones y pureza

≥97%

Condiciones de almacenamiento de almacenamiento

Store at 2-8°C

Enviado en

Wet ice

Este producto requiere envío en cadena de frío. Los servicios terrestres y otros servicios económicos no están disponibles.

Pureza

≥97%

Nombres e identificadores

• Sonrisas canónicas: CCCCCCN1C(=O)C2=C3C(=CC=C4C3=C(C=C2)C(=O)N(C4=O)CCCCCC)C1=O
• IUPAC Name: 6,13-dihexyl-6,13-diazatetracyclo[6.6.2.04,16.011,15]hexadeca-1(15),2,4(16),8,10-pentaene-5,7,12,14-tetrone
• InChIKey: QGDZMDFMUJURJD-UHFFFAOYSA-N
• INCHI: 1S/C26H30N2O4/c1-3-5-7-9-15-27-23(29)17-11-13-19-22-20(14-12-18(21(17)22)24(27)30)26(32)28(25(19)31)16-10-8-6-4-2/h11-14H,3-10,15-16H2,1-2H3
• Isómeros SMILES: CCCCCCN1C(=O)C2=C3C(=CC=C4C3=C(C=C2)C(=O)N(C4=O)CCCCCC)C1=O
• Peso molecular: 434.53
• Reaxy-Rn: 716883
• Reaxys-RN_link_address: https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=716883&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organoheterocyclic compounds
    • Clase Pyridines and derivatives
      • Subclass Bipyridines and oligopyridines

• Kingdom: Organic compounds
• Superclass: Organoheterocyclic compounds
• Clase: Pyridines and derivatives
• Subclass: Bipyridines and oligopyridines
• Intermediate Tree Nodes: Not available
• Direct Parent: Bipyridines and oligopyridines
• Alternative Parents: Isoquinolones and derivatives Naphthalenes Pyridinones Heteroaromatic compounds Lactams Azacyclic compounds Organooxygen compounds Organonitrogen compounds Organic oxides Hydrocarbon derivatives
• Molecular Framework: Aromatic heteropolycyclic compounds
• Substituents: Bipyridine - Isoquinolone - Isoquinoline - Naphthalene - Pyridinone - Benzenoid - Heteroaromatic compound - Lactam - Azacycle - Organooxygen compound - Organonitrogen compound - Hydrocarbon derivative - Organic oxide - Organic oxygen compound - Organic nitrogen compound - Aromatic heteropolycyclic compound
• Descripción: This compound belongs to the class of organic compounds known as bipyridines and oligopyridines. These are organic compounds containing two pyridine rings linked to each other.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Propiedades químicas y físicas

• Punto de fusión (°C): 205-210 °C
• Peso molecular: 434.500 g/mol
• XLogP3: 5.800
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 10
• Exact Mass: 434.221 Da
• Monoisotopic Mass: 434.221 Da
• Topological Polar Surface Area: 74.800 Ų
• Heavy Atom Count: 32
• Formal Charge: 0
• Complexity: 640.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1
