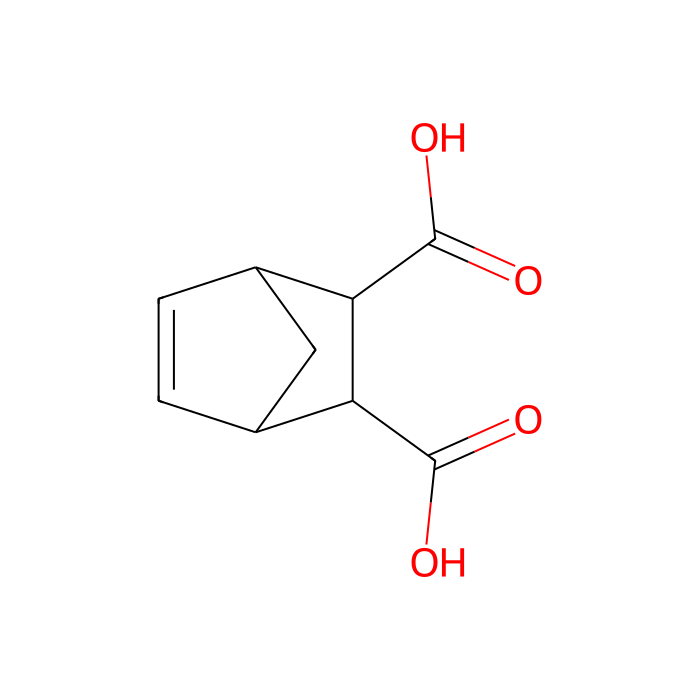

5-Norbornene-2,3-dicarboxylic Acid（NDC） - ≥98% , CAS No.3813-52-3

CAS: 3813-52-3 Cat. No.: N159847 Peso molecular: 182.18 Número EC: 223-301-0

GRADE & PURITY ≥98%

Synonyms

AKOS000365644 | J-519849 | MFCD00152680 | 4-nitro-3-chloro-trifluoromethylbenzene;1-Chloro-2-nitro-5-(trifluoromethyl)benzene | 51MWF38CQG | 5-Norbornene-2,3-dicarboxylic acid | Bicyclo[2.2.1]hept-5-ene-2,3-dicarboxylic acid, (1R,2S,3R,4S)-rel-5-Norbornen

Storage

Room temperature

Shipped In

Normal

Specifications

Sinónimos

AKOS000365644 | J-519849 | MFCD00152680 | 4-nitro-3-chloro-trifluoromethylbenzene;1-Chloro-2-nitro-5-(trifluoromethyl)benzene | 51MWF38CQG | 5-Norbornene-2, 3-dicarboxylic acid | Bicyclo[2.2.1]hept-5-ene-2, 3-dicarboxylic acid, (1R, 2S, 3R, 4S)-rel-5-Norbornen

Especificaciones y pureza

≥98%

Condiciones de almacenamiento de almacenamiento

Room temperature

Enviado en

Normal

Pureza

≥98%

Nombres e identificadores

• Pubchem Sid: 488187095
• Pubchem Sid Url: https://pubchem.ncbi.nlm.nih.gov/substance/488187095
• Sonrisas canónicas: C1C2C=CC1C(C2C(=O)O)C(=O)O
• IUPAC Name: bicyclo[2.2.1]hept-5-ene-2,3-dicarboxylic acid
• InChIKey: NIDNOXCRFUCAKQ-UHFFFAOYSA-N
• INCHI: 1S/C9H10O4/c10-8(11)6-4-1-2-5(3-4)7(6)9(12)13/h1-2,4-7H,3H2,(H,10,11)(H,12,13)
• Isómeros SMILES: C1C2C=CC1C(C2C(=O)O)C(=O)O
• Peso molecular: 182.18
• Reaxy-Rn: 1877507
• Reaxys-RN_link_address: https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=1877507&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organic acids and derivatives
    • Clase Carboxylic acids and derivatives
      • Subclass Dicarboxylic acids and derivatives

• Kingdom: Organic compounds
• Superclass: Organic acids and derivatives
• Clase: Carboxylic acids and derivatives
• Subclass: Dicarboxylic acids and derivatives
• Intermediate Tree Nodes: Not available
• Direct Parent: Dicarboxylic acids and derivatives
• Alternative Parents: Carboxylic acids Organic oxides Hydrocarbon derivatives Carbonyl compounds
• Molecular Framework: Aliphatic homopolycyclic compounds
• Substituents: Dicarboxylic acid or derivatives - Carboxylic acid - Organic oxygen compound - Organic oxide - Hydrocarbon derivative - Organooxygen compound - Carbonyl group - Aliphatic homopolycyclic compound
• Descripción: This compound belongs to the class of organic compounds known as dicarboxylic acids and derivatives. These are organic compounds containing exactly two carboxylic acid groups.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Mecanismos de acción

Propiedades químicas y físicas

• Solubilidad: Soluble in Methanol
• Punto de fusión (°C): 175°C(dec.)(lit.)
• Peso molecular: 182.170 g/mol
• XLogP3: 0.300
• Hydrogen Bond Donor Count: 2
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 2
• Exact Mass: 182.058 Da
• Monoisotopic Mass: 182.058 Da
• Topological Polar Surface Area: 74.600 Ų
• Heavy Atom Count: 13
• Formal Charge: 0
• Complexity: 266.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 4
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1

Referencias

1. Nan Xiao, Qi Jiao, Jieqing Shen, Hengti Wang, Xin Yang, Lian Wang, Yongjin Li.  (2026)  Arraying calcium carbonate core-shell nanoparticles densely on carbon fibers by coordination effect for interfacial enhancement of polydicyclopentadiene/carbon fiber felt (PDCPD/CFF) composites.  CHEMICAL ENGINEERING JOURNAL,      [PMID:] [10.1016/j.cej.2026.174578]
