PIPES - UltraBio™, Ultra pure, ≥99%(T) , CAS No.5625-37-6

CAS: 5625-37-6 Cat. No.: P432927 Peso molecular: 302.37 Beilstein Registry Number: 817713 Número EC: 227-057-6

GRADE & PURITY UltraBio™, Ultra pure, ≥99%(T)

Synonyms

FT-0635789 | G502H79V6L | NCGC00164485-01 | 2,2'-piperazine-1,4-diylbisethanesulfonic acid | 2-[(2-aminoacetyl)-methylamino]acetic acid | NSC157117 | NSC-157117 | 2,2'-(Piperazine-1,4-diyl)diethanesulfonicacid | CHEBI:44933 | AS-12650 | 3,9-bis(2,4-ditert

Storage

Room temperature

Descripción general

PIPES is a member of the ethanesulfonic acid buffer series, first introduced by Good et al., developed to meet certain criteria: midrange pKa, maximum water solubility and minimum solubility in all other solvents, minimal salt effects, minimal change in pKa with temperature, chemically and enzymatically stable, minimal absorption in visible or UV spectral range and easily synthesized. Since its pKa at 37 °C is near physiological pH, PIPES has applications in cell culture work.

Application

Protocols have been reported on the use of PIPES for separation of glyoxylated RNA in agarose gels, nuclease S1 mapping of RNA, and in ribonuclease protection assay protocols. PIPES has been used as a buffer in glutaraldehyde fixation of tissue samples. , PIPES has been utilized in protein crystallization. , The use of PIPES in the reconstitution of dissociated tubulin α and β subunits after their resolution on immunoadsorbent gels has been described. PIPES has been recommended for use in buffers for the in vitro study of caspases 3, 6, 7, and 8. A published study demonstrated the usefulness of PIPES as a non-metal ion complexing buffer in such applications as protein assays. PIPES has been used in cell culture for such applications as the engineering of a thermostable mutant membrane protein in Escherichia coli .

Specifications

Sinónimos

FT-0635789 | G502H79V6L | NCGC00164485-01 | 2, 2'-piperazine-1, 4-diylbisethanesulfonic acid | 2-[(2-aminoacetyl)-methylamino]acetic acid | NSC157117 | NSC-157117 | 2, 2'-(Piperazine-1, 4-diyl)diethanesulfonicacid | CHEBI:44933 | AS-12650 | 3, 9-bis(2, 4-ditert

Especificaciones y pureza

UltraBio™, Ultra pure, ≥99%(T)

Condiciones de almacenamiento de almacenamiento

Room temperature

Grado

Ultra pure, UltraBio™

Pureza

≥99%(T)

Nombres e identificadores

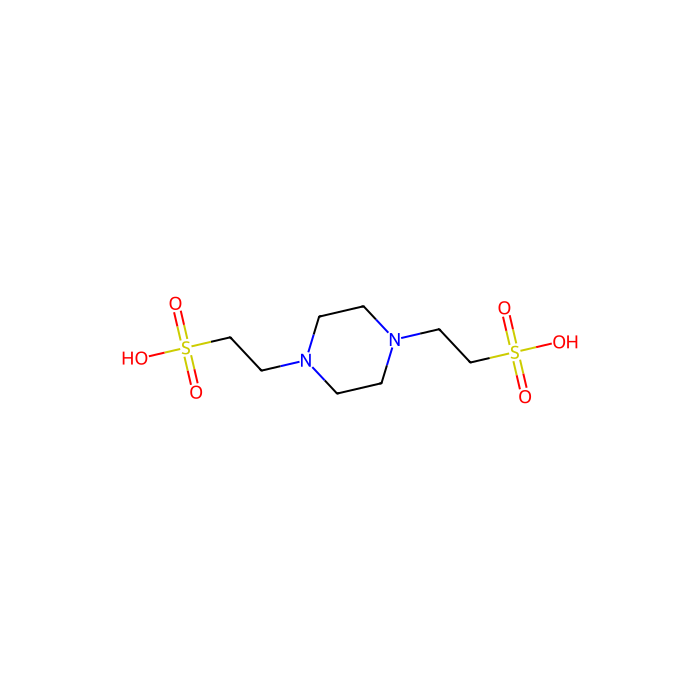

• Sonrisas canónicas: C1CN(CCN1CCS(=O)(=O)O)CCS(=O)(=O)O
• IUPAC Name: 2-[4-(2-sulfoethyl)piperazin-1-yl]ethanesulfonic acid
• InChIKey: IHPYMWDTONKSCO-UHFFFAOYSA-N
• INCHI: 1S/C8H18N2O6S2/c11-17(12,13)7-5-9-1-2-10(4-3-9)6-8-18(14,15)16/h1-8H2,(H,11,12,13)(H,14,15,16)
• Isómeros SMILES: C1CN(CCN1CCS(=O)(=O)O)CCS(=O)(=O)O
• WGK Alemania: 3
• Peso molecular: 302.37
• Beilstein: 817713
• Reaxy-Rn: 817713
• Reaxys-RN_link_address: https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=817713&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organoheterocyclic compounds
    • Clase Diazinanes
      • Subclass Piperazines

• Kingdom: Organic compounds
• Superclass: Organoheterocyclic compounds
• Clase: Diazinanes
• Subclass: Piperazines
• Intermediate Tree Nodes: Not available
• Direct Parent: N-alkylpiperazines
• Alternative Parents: Sulfonyls Organosulfonic acids Alkanesulfonic acids Trialkylamines Azacyclic compounds Organopnictogen compounds Organic oxides Hydrocarbon derivatives
• Molecular Framework: Aliphatic heteromonocyclic compounds
• Substituents: N-alkylpiperazine - Organic sulfonic acid or derivatives - Organosulfonic acid or derivatives - Organosulfonic acid - Sulfonyl - Alkanesulfonic acid - Tertiary amine - Tertiary aliphatic amine - Azacycle - Amine - Organic oxide - Organopnictogen compound - Organic oxygen compound - Organic nitrogen compound - Organosulfur compound - Organonitrogen compound - Hydrocarbon derivative - Aliphatic heteromonocyclic compound
• Descripción: This compound belongs to the class of organic compounds known as n-alkylpiperazines. These are organic compounds containing a piperazine ring where the nitrogen ring atom carries an alkyl group.
• External Descriptors: PIPES

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Propiedades químicas y físicas

• Solubilidad: 1 M NaOH: 0.5M at20°C, clear, colorless
• Punto de fusión (°C): ＞300°C
• Peso molecular: 302.400 g/mol
• XLogP3: -6.700
• Hydrogen Bond Donor Count: 2
• Hydrogen Bond Acceptor Count: 8
• Rotatable Bond Count: 6
• Exact Mass: 302.061 Da
• Monoisotopic Mass: 302.061 Da
• Topological Polar Surface Area: 132.000 Ų
• Heavy Atom Count: 18
• Formal Charge: 0
• Complexity: 397.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1

Referencias

1. Dandan Cheng, Xin Han, Jiawen Zou, Zhenyu Li, Meiru Wang, Yuqing Liu, Kexuan Wang, Yan Li.  (2023)  Enhancing Cytochrome C Recognition and Adsorption through Epitope-Imprinted Mesoporous Silica with a Tailored Pore Size.  ACS Omega,      [PMID:38222537] [10.1021/acsomega.3c07387]

2. Dong Cheng, Haoran Ding, Yuansen Tan, Dezhi Yang, Ying Pan, Wenjuan Liao, Feng He.  (2023)  Dramatically enhanced phenol degradation upon FeS oxygenation by low-molecular-weight organic acids.  JOURNAL OF HAZARDOUS MATERIALS,      [PMID:37586237] [10.1016/j.jhazmat.2023.132260]

3. Yanchen Liu, Zhiqiang Zuo, He Li, Yaxin Xing, Dong Cheng, Miao Guo, Tao Liu, Min Zheng, Zhiguo Yuan, Xia Huang.  (2023)  In-situ advanced oxidation of sediment iron for sulfide control in sewers.  WATER RESEARCH,      [PMID:37247440] [10.1016/j.watres.2023.120077]

4. Ding Ming, Zhang Shuwei, Guo Yajuan, Yao Jingjing, Shen Qinghong, Huang Min, Chen Wenbo, Yu Shaofang, Zheng Yaqiu, Lin Yuefang, Yan Wenxin, Liu Zhongqiu, Su Tao, Lu Linlin.  (2022)  Tumor Microenvironment Acidity Triggers Lipid Accumulation in Liver Cancer via SCD1 Activation.  MOLECULAR CANCER RESEARCH,  20  (5): (810-822).  [PMID:35046108] [10.1158/1541-7786.MCR-21-0699]

5. Xinrui Hao, Jie Tang, Xiaoyun Yi, Kun Gao, Qian Yao, Chunhua Feng, Weilin Huang, Zhi Dang.  (2022)  Extracellular polymeric substance induces biogenesis of vivianite under inorganic phosphate-free conditions.  Journal of Environmental Sciences,      [PMID:35623765] [10.1016/j.jes.2021.08.043]

6. Hao Yu, Peng Zhang, Jiayu Liu, Yunsong Zheng, Nasiru Abba Mustapha.  (2021)  Effects of low-molecular-weight organic acids/thiols on hydroxyl radical production from natural siderite oxidation.  CHEMICAL GEOLOGY,      [PMID:] [10.1016/j.chemgeo.2021.120537]

7. Chunyu Zhang, Shoujing Qi, Jie Meng, Xuwei Chen.  (2021)  Selective and efficient extraction of heparin by arginine-functionalized flowered mesoporous silica nanoparticles with high capacity.  SEPARATION AND PURIFICATION TECHNOLOGY,      [PMID:] [10.1016/j.seppur.2021.119321]

8. Qian-Da Xu, Zhi-Long Yu, Wei-Cai Zeng.  (2021)  Structural and functional modifications of myofibrillar protein by natural phenolic compounds and their application in pork meatball.  FOOD RESEARCH INTERNATIONAL,      [PMID:34507738] [10.1016/j.foodres.2021.110593]

9. Xingyun Huang, Ying Peng, Jing Xu, Feng Wu, Gilles Mailhot.  (2020)  Iron(III)-induced photooxidation of arsenite in the presence of carboxylic acids and phenols as model compounds of natural organic matter.  CHEMOSPHERE,      [PMID:33297130] [10.1016/j.chemosphere.2020.128142]

10. Dong Cheng, Wenjuan Liao, Songhu Yuan.  (2020)  Effect of in situ generated iron oxyhydroxide coatings on FeS oxygenation and resultant hydroxyl radical production for contaminant degradation.  CHEMICAL ENGINEERING JOURNAL,      [PMID:] [10.1016/j.cej.2020.124961]

11. Ao Qian, Songhu Yuan, Shiwei Xie, Man Tong, Peng Zhang, Yunsong Zheng.  (2019)  Oxidizing Capacity of Iron Electrocoagulation Systems for Refractory Organic Contaminant Transformation.  ENVIRONMENTAL SCIENCE & TECHNOLOGY,      [PMID:31603317] [10.1021/acs.est.9b03754]

12. Rong Chen, Hui Liu, Peng Zhang, Lei Zhao, Kang Ding, Songhu Yuan.  (2019)  Attenuation of Fe(III)-reducing bacteria during table fluctuation of groundwater containing Fe2+.  SCIENCE OF THE TOTAL ENVIRONMENT,      [PMID:31400689] [10.1016/j.scitotenv.2019.133660]

13. Xiao-Yan Zhu, Hao Wu, Xiao-Feng Guo, Hong Wang.  (2019)  Novel BODIPY-based fluorescent probes with large Stokes shift for imaging hydrogen sulfide.  DYES AND PIGMENTS,      [PMID:] [10.1016/j.dyepig.2019.02.050]

14. Songhu Yuan, Xixiang Liu, Wenjuan Liao, Peng Zhang, Xiaoming Wang, Man Tong.  (2018)  Mechanisms of electron transfer from structrual Fe(II) in reduced nontronite to oxygen for production of hydroxyl radicals.  GEOCHIMICA ET COSMOCHIMICA ACTA,      [PMID:] [10.1016/j.gca.2017.12.025]

15. Peng Zhang, Songhu Yuan.  (2017)  Production of hydroxyl radicals from abiotic oxidation of pyrite by oxygen under circumneutral conditions in the presence of low-molecular-weight organic acids.  GEOCHIMICA ET COSMOCHIMICA ACTA,      [PMID:] [10.1016/j.gca.2017.08.032]

16. Peng Zhang, Weiyu Yao, Songhu Yuan.  (2016)  Citrate-enhanced release of arsenic during pyrite oxidation at circumneutral conditions.  WATER RESEARCH,      [PMID:27912099] [10.1016/j.watres.2016.11.058]

17. Dong Cheng, Songhu Yuan, Peng Liao, Peng Zhang.  (2016)  Oxidizing Impact Induced by Mackinawite (FeS) Nanoparticles at Oxic Conditions due to Production of Hydroxyl Radicals.  ENVIRONMENTAL SCIENCE & TECHNOLOGY,      [PMID:27700060] [10.1021/acs.est.6b02833]

18. Kuan Cheng, Zesheng Yang, Guojun Chen, Shiwen Hu, Chao Guo, Yang Yang, Shan Wang, Ying Wang, Haibo Dong, Milan Wang, Pengfei Cheng, Tongxu Liu.  (2024)  A comparative study on the stability of Fe(III) minerals formed by the nitrate/nitrite-reducing Fe(II) oxidation processes.  CHEMICAL GEOLOGY,      [PMID:] [10.1016/j.chemgeo.2024.122446]

19. Yu Wang, Jia-le Wang, Ke Li, Jing-jing Yuan, Bo Chen, Yun-tao Wang, Jun-guang Li, Yan-hong Bai.  (2024)  Effect of chickpea protein modified with combined heating and high-pressure homogenization on enhancing the gelation of reduced phosphate myofibrillar protein.  FOOD CHEMISTRY,      [PMID:39276541] [10.1016/j.foodchem.2024.141180]

20. Shuang Li, Yao Huang, Junhao Shen, Shengjun Mao, Rong Peng, Hui Liu.  (2024)  Iron transformation and hydroxyl radical production during mixing surface water and groundwater in the riparian zone: Effects of bicarbonate and surface water-groundwater ratio.  APPLIED GEOCHEMISTRY,      [PMID:] [10.1016/j.apgeochem.2024.106017]

21. Zhiqiang Zuo, Yiying He, Miao Guo, Tao Liu, Min Zheng, Yanchen Liu.  (2025)  Production of hydroxyl radicals by the oxygenation of FeS and the effect on sulfide removal in sewer systems.  WATER RESEARCH,      [PMID:40769060] [10.1016/j.watres.2025.124341]

22. Haijun Chang, Yu Huang, Yuanwei Shi, Yu Hu, Wenbin Zhou.  (2025)  Mechanism of purslane extract inhibiting oxidation and modifying physicochemical properties of pork myofibrillar proteins under oxidation system.  FOOD RESEARCH INTERNATIONAL,      [PMID:41214947] [10.1016/j.foodres.2025.117437]

23. Rong Peng, Qi Zhu, Shuang Li, Hui Liu.  (2025)  Nitrate concentration mediates iron transformation by an iron-oxidizing-reducing bacterium in the Fe(II)-Fe(III) co-existing system.  Environmental Science-Processes & Impacts,      [PMID:40859727] [10.1039/D5EM00298B]

24. Jing Liu, Sayako Inoué, Runliang Zhu, Hongping He, Michael F. Hochella.  (2021)  Facet-specific oxidation of Mn(II) and heterogeneous growth of manganese (oxyhydr)oxides on hematite nanoparticles.  GEOCHIMICA ET COSMOCHIMICA ACTA,      [PMID:] [10.1016/j.gca.2021.05.043]

25. Shouhao Tong, Hongyan Wei, Junming Zhou, Yixuan Yang, Runliang Zhu, Qingze Chen, Xiande Xie, Qing Hu, Michael F. Hochella Jr., Jing Liu.  (2025)  Atomic Insights into the Heterogeneous Crystallization of Manganese (Oxyhydr)oxides on Typical Iron (Oxyhydr)oxides: from Adsorption to Oxidation to Crystallization.  ENVIRONMENTAL SCIENCE & TECHNOLOGY,      [PMID:39976540] [10.1021/acs.est.4c10093]

26. Wei Ding, Jing Xu, Tao Chen, Chengshuai Liu, Jinjun Li, Feng Wu.  (2018)  Co-oxidation of As(III) and Fe(II) by oxygen through complexation between As(III) and Fe(II)/Fe(III) species.  WATER RESEARCH,      [PMID:30025352] [10.1016/j.watres.2018.06.072]

27. Bowen Song, Ziye Zhao, Zhanhong Qiao, Ji Li, Dawei Chen, Ming Zhao, Haiyang Hu.  (2025)  Bacteria-driven Mitoxantrone/Ferric ions liposomes to Synergize Chemotherapy, ferroptosis and immunotherapy for robust antitumor therapy.  JOURNAL OF COLLOID AND INTERFACE SCIENCE,      [PMID:40517488] [10.1016/j.jcis.2025.138193]

28. Tao Luo, Hao Wang, Tao Chen, Jing Xu, Jean-François Boily, Feng Wu, Khalil Hanna.  (2025)  Elucidating the Geochemical Dynamics of Arsenite and Pyrite in Aquatic Systems.  ENVIRONMENTAL SCIENCE & TECHNOLOGY,      [PMID:41134306] [10.1021/acs.est.5c09066]

29. Jinnian Wang, Haoming Zhao, Shijun Tong, Xingjian Zhang, Shuyu Ding, Han Zhang, Zhong-Hua Yang.  (2026)  Cascade biocatalysis for pyridoxal 5′-phosphate synthesis with ATP autonomy via polyphosphate kinase.  BIOORGANIC CHEMISTRY,      [PMID:41564697] [10.1016/j.bioorg.2026.109518]

30. Dong Cheng, Jiaqing Luo, Runhao Ma, Fan Wu, Binbin Wang, Yingying Ma, Guangyu Lou, Feng He.  (2026)  Polyacrylic acid-mediated sulfamethoxazole degradation by hydroxyl radicals during FeS oxidation under aerobic conditions.  Journal of Environmental Chemical Engineering,  14  (2): (121494).  [PMID:] [10.1016/j.jece.2026.121494]

31. Haijun Chang, Xin Wen, Yu Huang, Yu Hu, Yuanwei Shi.  (2026)  Mechanism of interaction between Portulaca oleracea L. extract and pork myofibrillar protein: Insights from spectroscopic and molecular docking analyses.  Food Chemistry-X,      [PMID:41674692] [10.1016/j.fochx.2026.103627]

32. Qian-Da Xu, Qiang He, Wei-Cai Zeng.  (2026)  Modulation of protein self-assembly via hydrolysis and metal ion coordination: Effects on EGCG encapsulation and controlled release.  FOOD CHEMISTRY,      [PMID:41707262] [10.1016/j.foodchem.2026.148466]

33. Xiaolei Chen, Jinzhao Tong, Xiaomeng Wang, Ruizong Zhang, Zhan Li, Longlong Tian, Wangsuo Wu.  (2026)  Microbial-based chromatographic system for high-purity 90Y production via Lanmodulin-mediated adsorption.  SEPARATION AND PURIFICATION TECHNOLOGY,      [PMID:] [10.1016/j.seppur.2026.137677]
