FAM azide,6-isomer - ≥95% , CAS No.1386385-76-7

CAS: 1386385-76-7 Cat. No.: F278701 Peso molecular: 458.42

GRADE & PURITY ≥95%

Storage

Protected from light,Store at -20°C

Shipped In

Ice chest + Ice pads

Descripción general

FAM azide, 6-isomer (6-FAM azide), a fluorescent dye, is a click chemistry reagent containing an azide group. It contains an azide group and can undergo copper-catalyzed azide-alkyne cycloaddition (CuAAc) with molecules containing alkyne groups. It can also undergo ring strain-promoted alkyne-azide cycloaddition (SPAAC) with molecules containing DBCO or BCN groups.

Specifications

Especificaciones y pureza

≥95%

Mecanismos bioquímicos y fisiológicos

Green emitting fluorescent dye azide for click chemistry.

Condiciones de almacenamiento de almacenamiento

Protected from light, Store at -20°C

Enviado en

Ice chest + Ice pads

Este producto requiere envío en cadena de frío. Los servicios terrestres y otros servicios económicos no están disponibles.

Pureza

≥95%

Nombres e identificadores

• Pubchem Sid: 504772171
• Pubchem Sid Url: https://pubchem.ncbi.nlm.nih.gov/substance/504772171
• Sonrisas canónicas: C1=CC2=C(C=C1C(=O)NCCCN=[N+]=[N-])C3(C4=C(C=C(C=C4)O)OC5=C3C=CC(=C5)O)OC2=O

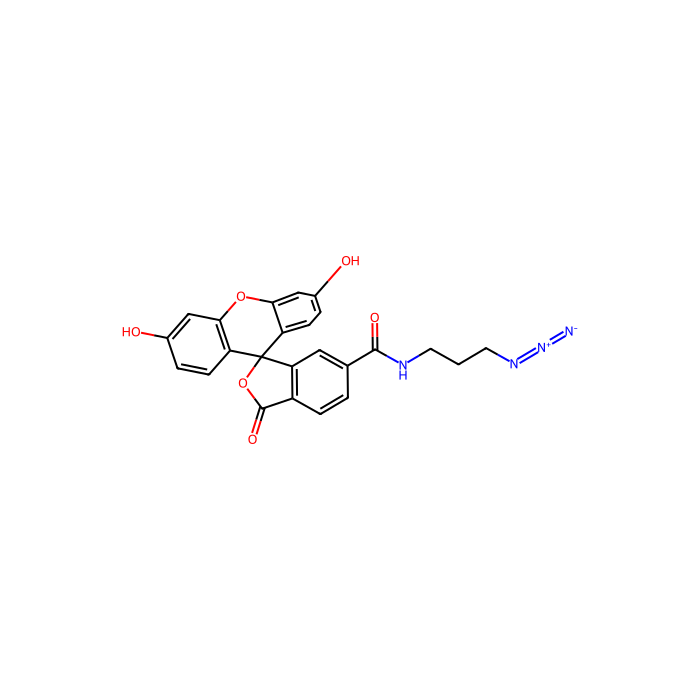

• IUPAC Name: N-(3-azidopropyl)-3',6'-dihydroxy-1-oxospiro[2-benzofuran-3,9'-xanthene]-5-carboxamide
• InChIKey: JQDJGCPZDAATOX-UHFFFAOYSA-N
• INCHI: 1S/C24H18N4O6/c25-28-27-9-1-8-26-22(31)13-2-5-16-19(10-13)24(34-23(16)32)17-6-3-14(29)11-20(17)33-21-12-15(30)4-7-18(21)24/h2-7,10-12,29-30H,1,8-9H2,(H,26,31)
• Isómeros SMILES: C1=CC2=C(C=C1C(=O)NCCCN=[N+]=[N-])C3(C4=C(C=C(C=C4)O)OC5=C3C=CC(=C5)O)OC2=O
• Peso molecular: 458.42
• Reaxy-Rn: 22924757
• Reaxys-RN_link_address: https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=22924757&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organoheterocyclic compounds
    • Clase Benzopyrans
      • Subclass 1-benzopyrans
        • Level5 Dibenzopyrans
          • Level6 Xanthenes

• Kingdom: Organic compounds
• Superclass: Organoheterocyclic compounds
• Clase: Benzopyrans
• Subclass: 1-benzopyrans
• Intermediate Tree Nodes: Dibenzopyrans
• Direct Parent: Xanthenes
• Alternative Parents: Diarylethers Phthalides Benzofuranones Isobenzofurans 1-hydroxy-2-unsubstituted benzenoids Secondary carboxylic acid amides Lactones Carboxylic acid esters Azo imides Azo compounds Oxacyclic compounds Organic zwitterions Organic salts Organic oxides Hydrocarbon derivatives
• Molecular Framework: Aromatic heteropolycyclic compounds
• Substituents: Xanthene - Diaryl ether - Benzofuranone - Phthalide - Isobenzofuranone - Isobenzofuran - Isocoumaran - Phenol - 1-hydroxy-2-unsubstituted benzenoid - Benzenoid - Azo compound - Azo imide - Carboxamide group - Secondary carboxylic acid amide - Carboxylic acid ester - Lactone - Oxacycle - Carboxylic acid derivative - Ether - Hydrocarbon derivative - Organonitrogen compound - Organooxygen compound - Organic oxygen compound - Organic oxide - Organic zwitterion - Organic nitrogen compound - Organic salt - Aromatic heteropolycyclic compound
• Descripción: This compound belongs to the class of organic compounds known as xanthenes. These are polycyclic aromatic compounds containing a xanthene moiety, which consists of two benzene rings joined to each other by a pyran ring.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Propiedades químicas y físicas

• Sensibilidad: Sensitive to light;sensitive to heat
• Peso molecular: 458.400 g/mol
• XLogP3: 4.000
• Hydrogen Bond Donor Count: 3
• Hydrogen Bond Acceptor Count: 8
• Rotatable Bond Count: 5
• Exact Mass: 458.123 Da
• Monoisotopic Mass: 458.123 Da
• Topological Polar Surface Area: 119.000 Ų
• Heavy Atom Count: 34
• Formal Charge: 0
• Complexity: 821.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1

Referencias

1. Yuchen Wang, Shi-Chao Lu, Hui Wen, Chunyue Zhao, Yanfei Jiang, Huaqing Cui.  (2024)  A CuSO4/Bicinchoninic acid/Reducing sugar based stable and non-ROS catalyst system for the CuAAC reaction in bioanalysis.  BIOORGANIC CHEMISTRY,      [PMID:38878754] [10.1016/j.bioorg.2024.107557]
