p38 MAPK Signaling Pathway: Activation Mechanisms, MK2 Functional Output, and Experimental Interpretation

p38 MAPK is an important MAPK branch involved in cellular responses to inflammation, pathogen recognition, and environmental stress. Its canonical signaling is driven by the MAP3K–MKK3/6–p38 cascade and influences inflammatory output, stress adaptation, and cell fate through MK2–HSP27, MK2–TTP, and nuclear transcriptional regulation.

Keywords: p38 MAPK; MAPK14; MKK3/MKK6; MK2; HSP27; TTP; ERK/JNK; p38 inhibitors

1 Components and Isoforms of the p38 MAPK Signaling Axis

1.1 p38α, p38β, p38γ, and p38δ

(1) p38α

p38α is encoded by MAPK14 and is the predominant p38 isoform studied in inflammation and stress responses. Following dual phosphorylation at Thr180/Tyr182 by MKK3/6, p38α can further activate MK2, MSK, and multiple nuclear substrates, forming the canonical p38α–MK2 functional axis.

(2) p38β

p38β is encoded by MAPK11 and shares high structural homology with p38α, with partial overlap in upstream kinases and substrates. Classical inhibitors such as SB203580 and SB202190 generally act on both p38α and p38β, making it difficult to distinguish the independent contribution of each isoform using these tools alone.

(3) p38γ and p38δ

p38γ and p38δ are encoded by MAPK12 and MAPK13, respectively. p38γ is relatively abundant in skeletal muscle, whereas p38δ is more involved in signaling in certain immune, epithelial, and endocrine tissues. Both show relatively low sensitivity to classical p38α/β inhibitors such as SB203580.

Table 1 Major Differences Among p38 MAPK Isoforms

Isoform	Encoding Gene	Expression and Functional Characteristics	SB203580 Sensitivity	Major Research Directions
p38α	MAPK14	Broadly expressed; forms the classical functional axis with MK2	High	Inflammation, immunity, stress, cell cycle
p38β	MAPK11	Partially overlaps with p38α in substrates and pharmacological characteristics	High	Neural, inflammatory, and stress signaling
p38γ	MAPK12	Relatively abundant in skeletal muscle	Low	Muscle, metabolism, and tissue-specific signaling
p38δ	MAPK13	Expressed in some immune, epithelial, and endocrine tissues	Low	Inflammation, differentiation, and tissue-specific regulation

1.2 MKK3/MKK6 and Major Upstream MAP3Ks

(1) MKK3/MKK6

MKK3 and MKK6 are the principal direct upstream MAP2Ks of p38 and sequentially phosphorylate Thr180 and Tyr182 within the p38 activation loop. Dual-site phosphorylation shifts the activation loop into a catalytically competent conformation, enabling p38 to efficiently phosphorylate downstream substrates.

(2) TAK1

Following TLR or IL-1R activation, IRAK–TRAF6-associated complexes form K63-linked ubiquitin signaling platforms, through which TAB2/TAB3 recruit and activate TAK1. TAK1 subsequently branches into MKK3/6–p38, MKK4/7–JNK, and IKK–NF-κB pathways, serving as an important convergence node through which inflammatory stimuli simultaneously initiate multiple signaling pathways.

(3) ASK1

Under resting conditions, reduced Thioredoxin binds ASK1 and restricts its activation. When ROS levels increase, Thioredoxin becomes oxidized and dissociates from ASK1. Activated ASK1 then transmits signals to MKK3/6–p38 and MKK4/7–JNK, causing oxidative stress to frequently generate parallel p38/JNK responses.

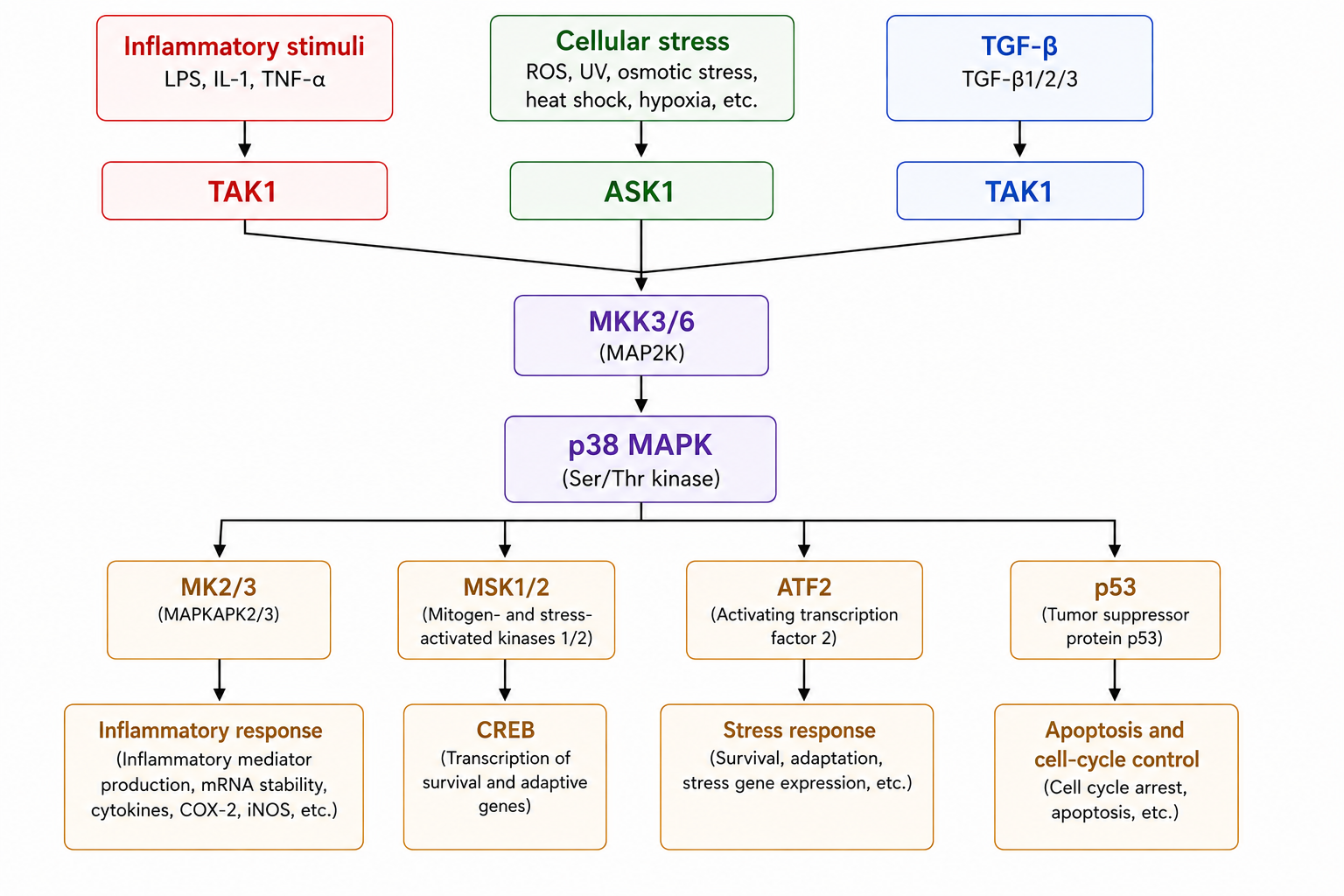

Figure 1. Upstream activation, core kinase cascade, and major functional outputs of the p38 MAPK signaling pathway

2 Activation Mechanisms of p38 MAPK

2.1 Inflammatory Cytokine and Pattern-Recognition Receptor Signaling

(1) TLR4–TAK1–p38

After LPS binds the TLR4–MD-2 receptor complex, MyD88-associated signaling recruits IRAK and TRAF6 and activates TAK1 through a ubiquitin-based signaling platform. TAK1 subsequently enters the MKK3/6–p38 cascade while simultaneously initiating inflammatory branches including JNK and NF-κB.

(2) IL-1R–TAK1–p38

IL-1R and some TLRs share the MyD88–IRAK–TRAF6 signaling architecture. Following IL-1 binding to its receptor, signaling converges with TLR pathways at the TAK1–MKK3/6 level, allowing different inflammatory stimuli to generate similar p38 activation patterns.

(3) TNFR–p38

Following TNF-α binding to TNFR1, a membrane-associated complex containing components such as RIPK1, TRAF, and cIAP can form and recruit upstream kinases including TAK1. This complex simultaneously controls p38/JNK, NF-κB, and cell-death-related signaling, and the functional output of TNFR depends on complex composition and signal duration.

2.2 Oxidative Stress, Osmotic Stress, and DNA Damage

(1) ROS–ASK1–p38

H₂O₂, mitochondrial ROS, and other oxidative stimuli can release ASK1 from Thioredoxin-mediated inhibition, allowing ASK1 to continuously transmit signals to p38 and JNK. Transient ROS exposure mainly induces adaptive responses, whereas sustained oxidative conditions can additionally cause mitochondrial and DNA damage.

(2) Hyperosmotic Stress

Hyperosmotic conditions cause cellular dehydration and volume reduction while altering ion concentrations and Actin Cytoskeleton tension. Stress-responsive MAP3Ks such as TAO and ASK can transmit these changes to MKK3/6–p38, after which MK2–HSP27 participates in cytoskeletal remodeling.

(3) DNA Damage

Ultraviolet radiation, topoisomerase inhibitors, and ROS can simultaneously initiate DNA-damage responses and stress MAPK signaling. p38 further influences cell-cycle regulatory nodes such as p53 and Cdc25, linking damage signals to cell-cycle arrest, repair, or cell death.

2.3 p38 Phosphorylation and Signal Termination

(1) Dual Phosphorylation of the TGY Motif

The p38 activation loop contains a Thr–Gly–Tyr (TGY) motif, and canonical activation depends on dual phosphorylation at Thr180 and Tyr182. Experimentally, detection of p-p38 Thr180/Tyr182 primarily reflects whether the activation loop has been acted on by upstream MAP2Ks.

(2) TAB1-Mediated Noncanonical Activation

In addition to participating in the TAK1 complex, TAB1 can directly bind p38α. Under certain stress conditions, this interaction can induce conformational changes and autophosphorylation of p38α, allowing it to acquire activity in the absence of classical MKK3/6 input.

(3) DUSP-Mediated Signal Termination

Dual-specificity phosphatases such as DUSP1/MKP-1 can remove phosphate groups from both Thr and Tyr residues within the p38 activation loop. Inflammatory and stress stimuli can also induce DUSP expression, creating a “rapid activation–delayed shutdown” temporal pattern of p38 signaling.

3 Major Downstream Functional Modules of p38 MAPK

3.1 p38–MK2 Signaling Axis

(1) MK2 Activation

p38α/β can form stable complexes with MK2. Activated p38 further phosphorylates MK2 and changes its catalytic state and subcellular localization. MK2 thereby transmits p38 signaling to cytoskeletal regulation and post-transcriptional control of inflammation.

(2) MK2–HSP27

MK2 can phosphorylate HSP27 at sites including Ser15, Ser78, and Ser82, with Ser82 being one commonly detected site. Following phosphorylation, the oligomeric state of HSP27 and its interaction with Actin change, contributing to microfilament reorganization, maintenance of cell morphology, and migration.

(3) MK2–TTP

TTP recognizes AU-rich elements in the 3′UTRs of certain inflammatory mRNAs, including TNF and IL6, and promotes their degradation. Following phosphorylation by MK2, TTP shows enhanced binding to 14-3-3, reducing TTP-mediated mRNA degradation and extending the half-lives of these inflammatory transcripts.

3.2 ATF2 and Nuclear Transcriptional Regulation

(1) ATF2

The N-terminal transcriptional activation region of ATF2 can be phosphorylated by p38 and JNK, with representative sites including Thr69 and Thr71. Phosphorylated ATF2 forms transcriptional complexes with proteins such as Jun and regulates expression of inflammation- and stress-related genes.

(2) MSK–CREB

Both p38 and ERK can activate MSK1/2, after which MSK acts on CREB Ser133 and certain chromatin-associated proteins. This module creates a clear shared nuclear transcriptional output between p38 and ERK.

(3) p53 and MEF2

Under DNA-damage conditions, p38 can strengthen p53-associated cell-cycle checkpoints. During myogenic differentiation, p38 can enhance MEF2- and MyoD-associated transcriptional programs. Differences in the transcription factors available in different cell types allow the same p38 kinase to generate different functional outcomes.

3.3 Inflammatory Mediator Expression and mRNA Stability

(1) Transcriptional Initiation

Following TLR or IL-1R stimulation, NF-κB and other transcription factors first promote expression of inflammatory genes such as TNF and IL6, with p38 participating through ATF2 and MSK. This stage primarily determines how much inflammatory transcript is produced.

(2) Transcript Stability

After transcription, p38–MK2–TTP continues to determine the degradation rate of certain short-lived inflammatory mRNAs. When MK2 reduces the mRNA-destabilizing function of TTP, existing transcripts such as TNF persist longer within the cell and continue to enter translation.

(3) Protein Output

Final levels of inflammatory mediators are jointly determined by transcriptional production, mRNA stability, and protein translation. A prominent role of p38–MK2 is to prolong the lifetime of certain inflammatory messages rather than simply “switching on” inflammatory genes.

4 Major Cellular Functions Mediated by p38 MAPK

4.1 Inflammation and Immune Responses

The p38α–MK2 axis can convert short-lived receptor-derived kinase signals into sustained inflammatory output. After TLR and IL-1R activate p38 through TAK1–MKK3/6, MK2 suppresses TTP-mediated degradation of inflammatory mRNAs, while ATF2 and MSK participate in nuclear transcription, thereby regulating both the intensity and duration of inflammation.

4.2 Stress Adaptation and Cell Survival

Under transient oxidative or hyperosmotic stress, MK2–HSP27 promotes Actin Cytoskeleton remodeling and helps cells restore structural homeostasis. When ROS or DNA damage persists, ASK1–p38/JNK signaling progressively integrates with p53, cell-cycle checkpoints, and mitochondrial damage, and the cellular response may shift from adaptation toward growth inhibition, senescence, or death.

4.3 Cell Cycle, Apoptosis, and Differentiation

(1) Cell-Cycle Checkpoints

Following DNA damage, p38–MK2 can influence cell-cycle regulatory proteins such as the Cdc25 family, reduce CDK activation, and delay cell-cycle transitions. Transient checkpoint arrest provides time for DNA repair, whereas prolonged arrest may progress into senescence or cell-death programs.

(2) Apoptosis

Strong oxidative stress can sustain ASK1-mediated activation of p38 and JNK and intersect with p53 and mitochondrial apoptotic networks. Once cellular injury exceeds adaptive capacity, mitochondrial integrity and the Caspase cascade are altered, and cells progressively enter apoptosis.

(3) Differentiation

In myogenic cells, p38 can enhance MEF2- and MyoD-associated transcriptional complexes, promote muscle-specific gene expression, and facilitate exit from the proliferative state. The relatively high expression of p38γ in muscle tissue further distinguishes this process from the canonical p38α–MK2 pattern in inflammatory cells.

5 Crosstalk Between p38 MAPK, JNK, and ERK

5.1 Shared Stress Network of p38 and JNK

(1) Shared MAP3Ks

ASK1 can transmit ROS signals simultaneously into the MKK3/6–p38 and MKK4/7–JNK pathways, while TAK1 can connect both branches in inflammatory contexts. Simultaneous increases in p38 and JNK therefore commonly arise from signal branching from shared upstream components.

(2) Shared ATF2

Both p38 and JNK can phosphorylate the transcriptional activation region of ATF2. After inhibition of one pathway, ATF2 may still receive input from the other MAPK branch, making p-ATF2 unsuitable as a p38-specific indicator.

5.2 Nuclear Convergence of p38 and ERK

(1) MSK1/2

Although p38 and ERK have different canonical upstream pathways, both can activate MSK1/2. MSK subsequently regulates CREB and chromatin proteins, allowing growth-factor and inflammation/stress signaling to converge in the nucleus.

(2) Multi-MAPK Combinatorial Responses

TLR, TNFR, and some cytokine receptors can simultaneously generate ERK, JNK, and p38 responses. The final transcriptional program depends on the magnitude and duration of activation across all three branches rather than a simple correspondence of “ERK for proliferation and p38/JNK for stress.”

5.3 DUSP and Feedback Remodeling

(1) DUSP Selectivity

Different DUSPs have different substrate preferences for p38, JNK, and ERK. DUSP1 can markedly limit sustained p38/JNK activation, whereas other DUSP members show varying degrees of selectivity toward ERK.

(2) Pathway Compensation

Long-term inhibition of one MAPK branch can alter DUSP expression, receptor feedback, and allocation of shared upstream signals, causing compensatory changes in other MAPKs. Increased ERK or JNK after drug treatment does not necessarily indicate that the drug directly activates these pathways.

6 Experimental Investigation and Interpretation of p38 MAPK Signaling

6.1 Detection of p-p38 and Total p38

(1) Detection Time Window

p-p38 usually rises rapidly during the early phase after stimulation and then gradually declines as DUSP-mediated negative feedback develops. LPS, Anisomycin, H₂O₂, and hyperosmotic stimulation have different peak times, and time-course experiments can distinguish rapid peaks, sustained activation, and recovery phases.

(2) p-p38/Total p38

p-p38 Thr180/Tyr182 reflects activation-loop phosphorylation, whereas total p38 reflects protein abundance. Acute stimulation mainly alters phosphorylation status, whereas chronic inflammation, differentiation, or stress may also alter expression of MAPK14 and other isoforms.

(3) Interpretation Boundary of p-p38

Persistence of Thr180/Tyr182 phosphorylation on p38 does not necessarily mean that its ATP-binding pocket can still normally support substrate phosphorylation. Direct catalytic inhibitors may leave p-p38 unchanged while markedly suppressing downstream outputs such as MK2.

6.2 p-MK2, p-HSP27, and Functional Validation

(1) p-MK2

p-MK2 is closer than p-p38 to the actual catalytic output of the canonical p38α/β pathway. Concurrent increases in p-p38 and p-MK2 indicate that activation has been transmitted from p38 to the downstream kinase level.

(2) p-HSP27

p-HSP27 further reflects whether MK2 has transmitted the signal to a functional substrate. Sequential changes in p-p38, p-MK2, and p-HSP27 can form a continuous evidence chain of “activation loop–downstream kinase–functional substrate.”

(3) Functional Endpoints

Inflammatory models can measure TNF-α and IL-6; stress models can assess ROS, cytoskeletal changes, and survival status; and DNA-damage models can combine cell-cycle distribution, p53, and Caspase measurements. Functional endpoints determine whether signaling changes are actually translated into cellular phenotypes.

6.3 Inhibitor Experiments and Pathway Specificity

(1) p-p38 Does Not Decrease After SB203580

SB203580 enters the ATP-binding region of p38α/β and inhibits substrate phosphorylation but does not prevent MKK3/6 from continuing to act on Thr180/Tyr182. Experimentally, p-p38 may remain unchanged or even increase while p-MK2 and p-HSP27 have already markedly decreased.

(2) Differences Between Doramapimod and SB203580

Doramapimod binds p38 differently, can stabilize specific inactive conformations, and covers a broader range of p38 isoforms. These conformational changes may also influence the action of upstream kinases on p38, causing its effects on p-p38 itself to differ from those of SB203580.

(3) Dissection of MAPK Pathways

When LPS, TNF-α, or ROS simultaneously activates p38 and JNK, tools targeting p38, JNK, and the MEK/ERK pathway can be used separately to compare corresponding downstream readouts. Key mechanisms can also be examined through knockdown or knockout of MAPK14 or other target isoforms, allowing pharmacological and genetic evidence to validate each other.

7 Products Related to p38 MAPK Signaling Research

7.1 Compounds Related to p38 MAPK Inhibition

Name	CAS No.	Major Targeting Position	Research Direction
SB203580	152121-47-6	p38α/p38β catalytic inhibition	Functional validation of p38–MK2/HSP27
SB202190	152121-30-7	p38α/p38β inhibition	Inflammatory and stress-related p38 research
Doramapimod (BIRB796)	285983-48-4	Multiple p38 isoforms	p38 conformational inhibition and isoform comparison
Neflamapimod (VX-745)	209410-46-8	p38α	p38α and neuroinflammation research
Talmapimod (SCIO-469)	309913-83-5	p38α-related	p38α and inflammatory mediator regulation
PH-797804	586379-66-0	p38α	Selective functional research of p38α
Losmapimod	585543-15-3	p38α/β-related	Inflammation and tissue stress
Skepinone-L	1221485-83-1	p38α	Selective catalytic inhibition of p38α
TAK-715	303162-79-0	p38α-related	p38 inflammatory signaling research
VX-702	745833-23-2	p38α-related	Pharmacological mechanisms of p38α
Ralimetinib (LY2228820)	862507-23-1	p38α/β-related	Tumor and stress signaling research

7.2 Compounds Related to p38 Activation and Stress Models

Name	CAS No.	Major Stimulation Direction	Research Direction
Anisomycin	22862-76-6	Stress MAPK activation	Positive stimulation of p38/JNK
Hydrogen Peroxide	7722-84-1	ROS	ASK1–p38 oxidative stress
Sodium Arsenite	7784-46-5	Oxidative and proteotoxic stress	p38/JNK stress responses
D-Sorbitol	50-70-4	Hyperosmotic stress	Osmotic-pressure-induced p38 activation
D-Mannitol	69-65-8	Hyperosmotic conditions	Osmotic pressure and MAPK responses
Doxorubicin Hydrochloride	25316-40-9	DNA damage, ROS	p38 and DNA-damage responses
Etoposide	33419-42-0	DNA damage	p38 and cell-cycle checkpoints
Camptothecin	7689-03-4	DNA damage	p38/JNK and apoptosis research
Menadione	58-27-5	ROS generation	Oxidative stress and MAPK
Staurosporine	62996-74-1	Apoptosis and kinase perturbation	p38 and cell-death networks
4-Nitroquinoline 1-oxide	56-57-5	DNA damage, oxidative stress	DNA-damage responses
Paraquat Dichloride	1910-42-5	ROS-related oxidative stress	Oxidative injury and stress MAPKs
Thapsigargin	67526-95-8	Disruption of ER Ca²⁺ homeostasis	Endoplasmic-reticulum stress and p38
Tunicamycin	11089-65-9	Endoplasmic-reticulum stress	Crosstalk between UPR and p38/JNK

7.3 Compounds for Studying p38 Upstream Signaling, MK2, and Parallel MAPKs

Name	CAS No.	Major Target Node	Research Direction
Selonsertib (GS-4997)	1448428-04-3	ASK1	ROS–ASK1–p38/JNK research
PF-3644022	1276121-88-0	MK2	p38–MK2 and post-transcriptional inflammatory regulation
SP600125	129-56-6	JNK	Functional dissection of p38/JNK
JNK-IN-8	1410880-22-6	JNK	Validation of JNK dependence
FR180204	865362-74-9	ERK1/2	Comparison of p38 and ERK pathways
U0126	109511-58-2	MEK1/2	Blockade of the MEK–ERK axis
PD98059	167869-21-8	MEK1-related	Mechanistic control for the ERK pathway
SCH772984	942183-80-4	ERK1/2	Validation of ERK dependence
CGP57380	522629-08-9	MNK-related	Research on MAPK–MNK–eIF4E output

p38 MAPK forms isoform- and time-dependent signaling patterns through different upstream inputs and converts these signals into specific cellular functions through MK2 and nuclear transcriptional networks. Distinguishing p38 phosphorylation, MK2 functional output, and the final cellular phenotype is critical for resolving the mechanism of p38 signaling.
