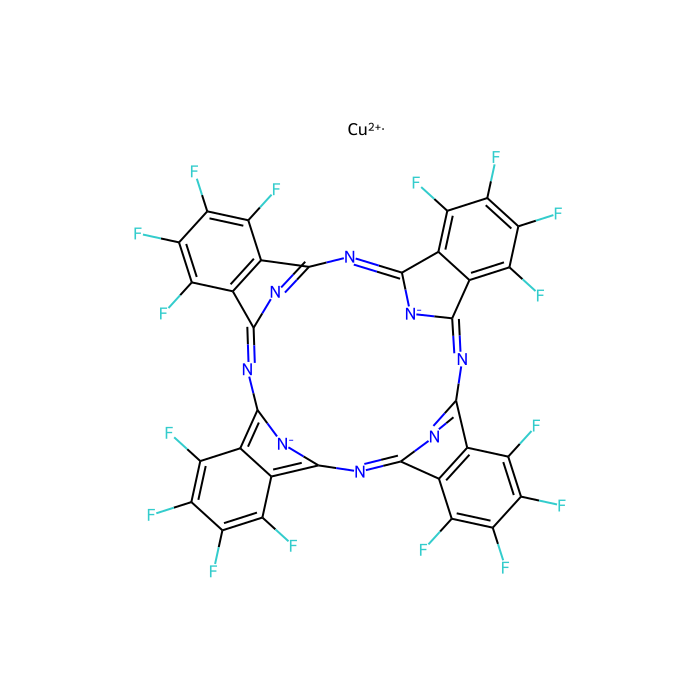

1,2,3,4,8,9,10,11,15,16,17,18,22,23,24,25-Hexadecafluorophthalocyanine Copper(II) - ≥80% , CAS No.14916-87-1

CAS: 14916-87-1 Cat. No.: H157140 Molecular Weight: 863.93 PubChem CID: 4283596

GRADE & PURITY ≥80%

Synonyms

copper;5,6,7,8,14,15,16,17,23,24,25,26,32,33,34,35-hexadecafluoro-2,11,20,29,37,39-hexaza-38,40-diazanidanonacyclo[28.6.1.13,10.112,19.121,28.04,9.013,18.022,27.031,36]tetraconta-1,3,5,7,9,11,13(18),14,16,19(39),20,22(27),23,25,28,30(37),31(36),32,34-nona

Storage

Room temperature

Shipped In

Normal

Overview

Copper(II) 1,2,3,4,8,9,10,11,15,16,17,18,22,23,24,25-hexadecafluoro-29H,31H-phthalocyanine(F16CuPc) is an organic molecule that can be used as an electron transporting material with good air-stability and an electron mobility of 0.11 cm2/Vs . It is majorly used in a variety of energy conservation based applications.

application：

F16CuPc can be used as an electron transporting layer for semiconducting applications such as an electron accepting material for organic photovoltaic cells and as a catalyst in biomimetic sensors. It may also be used in the fabrication of organic thin film transistors(OTFTs) and quartz crystal microbalance(QCM) based sensors.

Specifications

Synonyms

copper;5, 6, 7, 8, 14, 15, 16, 17, 23, 24, 25, 26, 32, 33, 34, 35-hexadecafluoro-2, 11, 20, 29, 37, 39-hexaza-38, 40-diazanidanonacyclo[28.6.1.13, 10.112, 19.121, 28.04, 9.013, 18.022, 27.031, 36]tetraconta-1, 3, 5, 7, 9, 11, 13(18), 14, 16, 19(39), 20, 22(27), 23, 25, 28, 30(37), 31(36), 32, 34-nona

Specifications & Purity

≥80%

Storage

Room temperature

Shipped In

Normal

Purity

≥80%

Names and Identifiers

• Pubchem Sid: 504762945
• Pubchem Sid Url: https://pubchem.ncbi.nlm.nih.gov/substance/504762945
• Canonical Smiles: C12=C(C(=C(C(=C1F)F)F)F)C3=NC4=NC(=NC5=C6C(=C([N-]5)N=C7C8=C(C(=C(C(=C8F)F)F)F)C(=N7)N=C2[N-]3)C(=C(C(=C6F)F)F)F)C9=C4C(=C(C(=C9F)F)F)F.[Cu+2]
• IUPAC Name: copper;5,6,7,8,14,15,16,17,23,24,25,26,32,33,34,35-hexadecafluoro-2,11,20,29,37,39-hexaza-38,40-diazanidanonacyclo[28.6.1.13,10.112,19.121,28.04,9.013,18.022,27.031,36]tetraconta-1,3,5,7,9,11,13(18),14,16,19(39),20,22(27),23,25,28,30(37),31(36),32,34-nonadecaene
• InChIKey: FJAOBQORBYMRNO-UHFFFAOYSA-N
• INCHI: 1S/C32F16N8.Cu/c33-9-1-2(10(34)18(42)17(9)41)26-49-25(1)53-27-3-4(12(36)20(44)19(43)11(3)35)29(50-27)55-31-7-8(16(40)24(48)23(47)15(7)39)32(52-31)56-30-6-5(28(51-30)54-26)13(37)21(45)22(46)14(6)38;/q-2;+2
• Isomeric SMILES: C12=C(C(=C(C(=C1F)F)F)F)C3=NC4=NC(=NC5=C6C(=C([N-]5)N=C7C8=C(C(=C(C(=C8F)F)F)F)C(=N7)N=C2[N-]3)C(=C(C(=C6F)F)F)F)C9=C4C(=C(C(=C9F)F)F)F.[Cu+2]
• PubChem CID: 4283596
• Molecular Weight: 863.93
• Reaxy-Rn: 1207122

Chemical and Physical Properties

• Melt Point(°C): >300 °C

References

1. Shimin Yu, Weiwei Zhang, Yongzhi Feng, Xiang Zhang, Chuanhua Li, Shengjun Shi, Haocheng Wang, Tianlong Li.  (2025)  Magnetic Cell-Mimetic Droplet Microrobots with Division and Exocytosis Capabilities.  Research,      [PMID:40463497] [10.34133/research.0730]
