1,10-Phenanthroline Maleimide - ≥96% , CAS No.351870-31-0

CAS: 351870-31-0 Cat. No.: P345281 Molecular Weight: 275.26 PubChem CID: 9961599

GRADE & PURITY ≥96%

Synonyms

1-(1,10-PHENANTHROLIN-5-YL)-2,5-DIHYDRO-1H-PYRROLE-2,5-DIONE | DTXSID30433327 | J-019981 | 1-(1,10-phenanthrolin-5-yl)pyrrole-2,5-dione | FT-0673672 | 1-(1,10-Phenanthrolin-5-yl)-1H-pyrrole-2,5-dione | 1,10-Phenanthroline Maleimide

Storage

Protected from light,Store at -20°C,Argon charged

Shipped In

Ice chest + Ice pads

Overview

1,10-Phenanthroline Maleimide is used in the synthesis of hybrid transition-metalloproteins via thiol-selective covalent anchoring of Rh-phosphine and Ru-phenanthroline complexes.

Specifications

Synonyms

1-(1, 10-PHENANTHROLIN-5-YL)-2, 5-DIHYDRO-1H-PYRROLE-2, 5-DIONE | DTXSID30433327 | J-019981 | 1-(1, 10-phenanthrolin-5-yl)pyrrole-2, 5-dione | FT-0673672 | 1-(1, 10-Phenanthrolin-5-yl)-1H-pyrrole-2, 5-dione | 1, 10-Phenanthroline Maleimide

Specifications & Purity

≥96%

Storage

Protected from light, Store at -20°C, Argon charged

Shipped In

Ice chest + Ice pads

This product requires cold chain shipping. Ground and other economy services are not available.

Purity

≥96%

Names and Identifiers

• Pubchem Sid: 504765158
• Pubchem Sid Url: https://pubchem.ncbi.nlm.nih.gov/substance/504765158

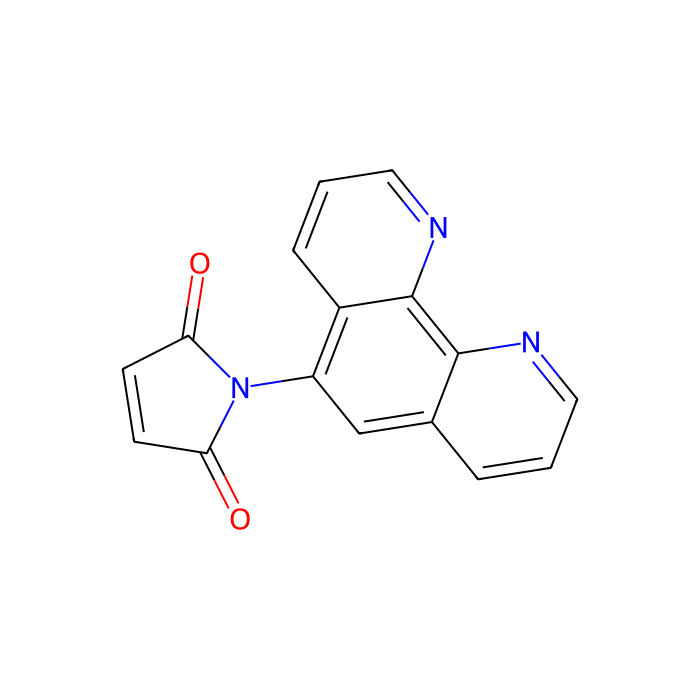

• Canonical Smiles: C1=CC2=CC(=C3C=CC=NC3=C2N=C1)N4C(=O)C=CC4=O
• IUPAC Name: 1-(1,10-phenanthrolin-5-yl)pyrrole-2,5-dione
• InChIKey: IXIRFFCTTLSORQ-UHFFFAOYSA-N
• INCHI: 1S/C16H9N3O2/c20-13-5-6-14(21)19(13)12-9-10-3-1-7-17-15(10)16-11(12)4-2-8-18-16/h1-9H
• Isomeric SMILES: C1=CC2=CC(=C3C=CC=NC3=C2N=C1)N4C(=O)C=CC4=O
• PubChem CID: 9961599
• Molecular Weight: 275.26

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organoheterocyclic compounds
    • Class Phenanthrolines

• Kingdom: Organic compounds
• Superclass: Organoheterocyclic compounds
• Class: Phenanthrolines
• Subclass: Not available
• Intermediate Tree Nodes: Not available
• Direct Parent: Phenanthrolines
• Alternative Parents: Quinolines and derivatives Maleimides Pyridines and derivatives N-substituted carboxylic acid imides Benzenoids Pyrrolines Heteroaromatic compounds Dicarboximides Azacyclic compounds Organonitrogen compounds Organic oxides Hydrocarbon derivatives Carbonyl compounds
• Molecular Framework: Aromatic heteropolycyclic compounds
• Substituents: 1,10-phenanthroline - Quinoline - Maleimide - Carboxylic acid imide, n-substituted - Pyridine - Benzenoid - Carboxylic acid imide - Dicarboximide - Pyrroline - Heteroaromatic compound - Carboxylic acid derivative - Azacycle - Organic oxide - Organic oxygen compound - Organooxygen compound - Organonitrogen compound - Organic nitrogen compound - Carbonyl group - Hydrocarbon derivative - Aromatic heteropolycyclic compound
• Description: This compound belongs to the class of organic compounds known as phenanthrolines. These are aromatic polycyclic compounds containing the phenanthroline skeleton, which is a derivative of phenanthrene, and consists of two pyridine rings non-linearly joined by a benzene ring.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Chemical and Physical Properties

• Sensitivity: Light sensitive
• Melt Point(°C): >213° C
• Molecular Weight: 275.260 g/mol
• XLogP3: 1.600
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 1
• Exact Mass: 275.069 Da
• Monoisotopic Mass: 275.069 Da
• Topological Polar Surface Area: 63.200 Ų
• Heavy Atom Count: 21
• Formal Charge: 0
• Complexity: 472.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1
