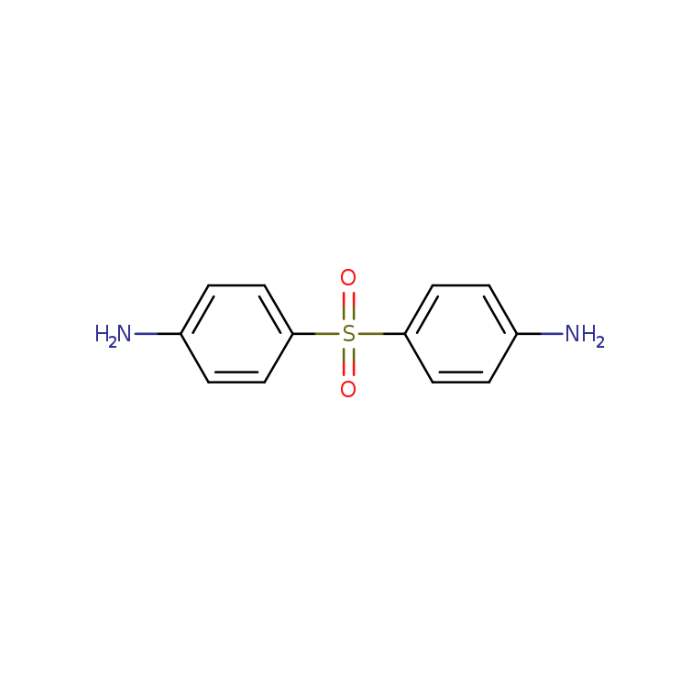

4,4'-Diaminodiphenyl Sulfone（DDS） - Moligand™, ≥99.5%, used for Tetrafunctional epoxy resin can be mixed with DDS and can be heat cured for oilfield applications. DDS can also be used to cure layered double hydroxide based epoxy resins of iron oxide (Fe2O

CAS: 80-08-0 Cat. No.: D1507143 Formula: C₁₂H₁₂N₂O₂S Molecular Weight: 248.3 Beilstein Registry Number: 788055 EC Number: 201-248-4

GRADE & PURITY Moligand™, ≥99.5%

Synonyms

Bis(4-aminophenyl) sulfone | 4-Aminophenyl sulfone | 4,4'-Sulfonyldianiline | 4,4'-Diaminodiphenyl Sulfone

Storage

Store at 2-8°C,Protected from light

Shipped In

Wet ice

Overview

4-Aminobenzenesulfone (DDS) is a diamine curing agent used for curing epoxy resins.

Product application:

Product application: Tetrafunctional epoxy resin can be mixed with DDS and can be heat cured for oilfield applications. DDS can also be used to cure layered double hydroxide based epoxy resins of iron oxide (Fe2O3), forming flame-retardant epoxy resin nanocomposites. It can also be used as a curing agent to cure bisphenol A (DGEBA) used in the manufacture of flame-retardant epoxy resin/clay nanocomposites.

Specifications

Synonyms

Bis(4-aminophenyl) sulfone | 4-Aminophenyl sulfone | 4,4'-Sulfonyldianiline | 4,4'-Diaminodiphenyl Sulfone

Specifications & Purity

Moligand™, ≥99.5%

Application

Tetrafunctional epoxy resin can be mixed with DDS and can be heat cured for oilfield applications. DDS can also be used to cure layered double hydroxide based epoxy resins of iron oxide (Fe2O3), forming flame-retardant epoxy resin nanocomposites. It can a

Storage

Store at 2-8°C,Protected from light

Shipped In

Wet ice

This product requires cold chain shipping. Ground and other economy services are not available.

Grade

Moligand™

Purity

≥99.5%

Product Properties

ALogP

1

Names and Identifiers

Canonical Smiles

NC1=CC=C(C=C1)S(=O)(=O)C1=CC=C(N)C=C1

IUPAC Name

4,4'-Sulfonyldianiline

InChIKey

MQJKPEGWNLWLTK-UHFFFAOYSA-N

INCHI

InChI=1S/C12H12N2O2S/c13-9-1-5-11(6-2-9)17(15,16)12-7-3-10(14)4-8-12/h1-8H,13-14H2

Isomeric SMILES

C1=CC(=CC=C1N)S(=O)(=O)C2=CC=C(C=C2)N

WGK Germany

1

RTECS

BY8925000

Molecular Weight

248.3

Beilstein

788055

Reaxy-Rn

788055

Reaxys-RN_link_address

https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=788055&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Benzenoids
    • Class Benzene and substituted derivatives
      • Subclass Benzenesulfonyl compounds

• Kingdom: Organic compounds
• Superclass: Benzenoids
• Class: Benzene and substituted derivatives
• Subclass: Benzenesulfonyl compounds
• Intermediate Tree Nodes: Not available
• Direct Parent: Benzenesulfonyl compounds
• Alternative Parents: Aniline and substituted anilines Sulfones Primary amines Organopnictogen compounds Organic oxides Hydrocarbon derivatives
• Molecular Framework: Aromatic homomonocyclic compounds
• Substituents: Benzenesulfonyl group - Aniline or substituted anilines - Sulfonyl - Sulfone - Organic nitrogen compound - Organic oxygen compound - Organopnictogen compound - Organic oxide - Hydrocarbon derivative - Primary amine - Organosulfur compound - Organonitrogen compound - Amine - Aromatic homomonocyclic compound
• Description: This compound belongs to the class of organic compounds known as benzenesulfonyl compounds. These are aromatic compounds containing a benzenesulfonyl group, which consists of a monocyclic benzene moiety that carries a sulfonyl group.
• External Descriptors: sulfone - substituted aniline

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Chemical and Physical Properties

• Solubility: Insoluble in water. Solubility in hot methanol is almost transparent. Soluble in DMSO, ethanol and acetone.
• Sensitivity: Moisture sensitive；Light sensitive
• Melt Point(°C): 173-178°C
