KT5720 - Moligand™, ≥97%(HPLC) , Allosteric modulator of M 1 receptor;Allosteric modulator of M 4 receptor, CAS No.108068-98-0, Allosteric modulator of M 1 receptor;Allosteric modulator of M 4 receptor

CAS: 108068-98-0 Cat. No.: K139563 Formula: C₃₂H₃₁N₃O₅ Molecular Weight: 537.6 EC Number: 810-587-2

GRADE & PURITY Moligand™, ≥97%(HPLC)

Synonyms

KT5720 - CAS 108068-98-0|Hexyl (15R,16R,18S)-16-hydroxy-15-methyl-3-oxo-28-oxa-4,14,19-triazaoctacyclo[12.11.2.115,18.02,6.07,27.08,13.019,26.020,25]octacosa-1,6,8,10,12,20,22,24,26-nonaene-16-carboxylate|9,12-Epoxy-1H-diindolo[1,2,3-fg:3',2',1'-kl]pyrrolo[3,4-i][1,6]benzodiazocine-10-carboxylic acid, 2,3,9,10,11,12-hexahydro-10-hydroxy-9-methyl-1-oxo-, hexyl ester, (9R,10R,12S)-rel-|KT 5720|(9R,10S,12S)-2,3,9,10,11,12-Hexahydro-10-hydroxy-9-methyl-1-oxo-9,12-epoxy-1H-diindolo[1,2,3-fg:3',2',1'-kl]pyrrolo[3,4-i][1,6]benzodiazocine-10-carboxylic acid, hexyl ester|KT5720|KT-5720|9,12-Epoxy-1H-diindolo(1,2,3-fg:3',2',1'-kl)pyrrolo (3,4-i)(1,6)benzodiazocine-10-carboxylic acid, 2,3,9,10,11,12-hexahydro-10-hydroxy-9-methyl-1-oxo-, hexyl ester, (9alpha,10beta,12alpha)-|antibiotic KT 5720|hexyl (15R,16S,18S)-16-hydroxy-15-methyl-3-oxo-28-oxa-4,14,19-triazaoctacyclo[12.11.2.115,18.02,6.07,27.08,13.019,26.020,25]octacosa-1,6,8,10,12,20,22,24,26-nonaene-16-carboxylate|hexyl (5R,6S,8S)-6-hydroxy-5-methyl-13-oxo-5,6,7,8,14,15-hexahydro-13H-5,8-epoxy-4b,8a,14-triazadibenzo[b,h]cycloocta[1,2,3,4-jkl]cyclopenta[e]-as-indacene-6-carboxylate|ANTIBIOTIC KT-5720|hexyl (15R,16S,18S)-16-hydroxy-15-methyl-3-oxo-28-oxa-4,14,19-triazaoctacyclo[12.11.2.1^{15,18}.0^{2,6}.0^{7,27}.0^{8,13}.0^{19,26}.0^{20,25}]octacosa-1(26),2(6),7(27),8(13),9,11,20(25),21,23-nonaene-16-carboxylate|(9R,10S,12S)-2,3,9,10,11,12-hexahydro-10-hydroxy-9-methyl-1-oxo-9,12-epoxy-1H-diindolo[1,2,3-fg:3',2',1'-kl]pyrrolo[3,4-i][1,6]benzodiazocine-10-carboxylic acid hexyl ester|9,12-Epoxy-1H-diindolo(1,2,3-fg:3',2',1'-kl)pyrrolo(3,4-i)(1,6)benzodiazocine-10-carboxylic acid, 2,3,9,10,11,12-hexahydro-10-hydroxy-9-methyl-1-oxo-, hexyl ester, (9R,10R,12S)-rel-|9,12-EPOXY-1H-DIINDOLO(1,2,3-FG:3',2',1'-KL)PYRROLO(3,4-I)(1,6)BENZODIAZOCINE-10-CARBOXYLIC ACID, 2,3,9,10,11,12-HEXAHYDRO-10-HYDROXY-9-METHYL-1-OXO-, HEXYL ESTER, (9R,10S,12S)-

Storage

Store at 2-8°C

Shipped In

Wet ice

Overview

KT5720: A selective inhibitor of cAMP-dependent protein kinase (PKA)
A potent, specific and cell-permeable inhibitor of PKA

Specifications

Synonyms

KT5720 - CAS 108068-98-0 | Hexyl (15R,16R,18S)-16-hydroxy-15-methyl-3-oxo-28-oxa-4,14,19-triazaoctacyclo[12.11.2.115,18.02,6.07,27.08,13.019,26.020,25]octacosa-1,6,8,10,12,20,22,24,26-nonaene-16-carboxylate | 9,12-Epoxy-1H-diindolo[1,2,3-fg:3',2',1'-kl]pyrrolo[3,4-i][1,6]benzodiazocine-10-carboxylic acid, 2,3,9,10,11,12-hexahydro-10-hydro Show more

Specifications & Purity

Moligand™, ≥97%(HPLC)

Biochemical and Physiological Mechanisms

Potent, selective protein kinase A (K i = 60 nM) inhibitor . Reversibly arrests human skin fibroblasts in the G1 phase. Cell permeable.

Storage

Store at 2-8°C

Shipped In

Wet ice

This product requires cold chain shipping. Ground and other economy services are not available.

Grade

Moligand™

Action Type

ALLOSTERIC MODULATOR

Mechanism of action

Allosteric modulator of M 1 receptor;Allosteric modulator of M 4 receptor

Note

Wherever possible, you should prepare and use solutions on the same day. However, if you need to make up stock solutions in advance, we recommend that you store the solution as aliquots in tightly sealed vials at -20°C. Generally, these will be useable for up to one month. Before use, and prior to opening the vial we recommend that you allow your product to equilibrate to room temperature for at least 1 hour. Need more advice on solubility, usage and handling? Please visit our frequently asked questions (FAQ) page for more details.

Purity

≥97%(HPLC)

Names and Identifiers

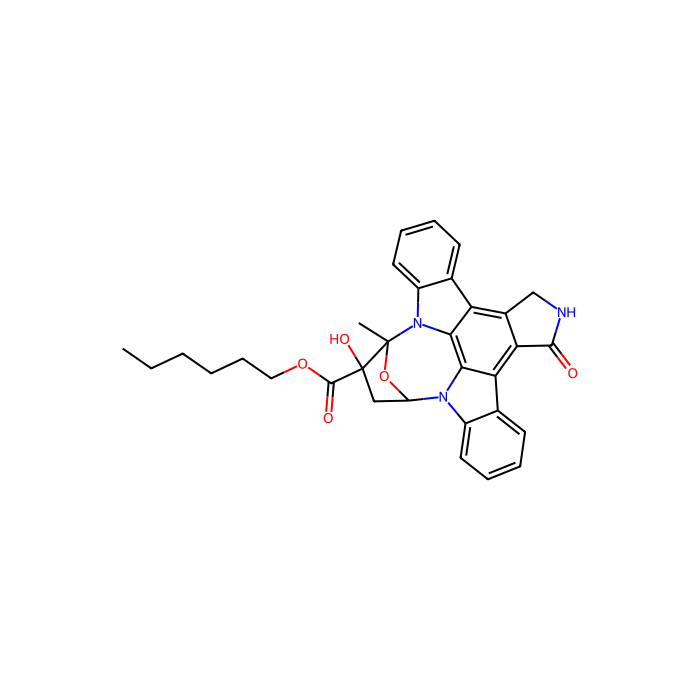

Canonical Smiles

CCCCCCOC(=O)C1(CC2N3C4=CC=CC=C4C5=C6C(=C7C8=CC=CC=C8N(C7=C53)C1(O2)C)CNC6=O)O

IUPAC Name

hexyl (15R,16S,18S)-16-hydroxy-15-methyl-3-oxo-28-oxa-4,14,19-triazaoctacyclo[12.11.2.115,18.02,6.07,27.08,13.019,26.020,25]octacosa-1,6,8,10,12,20,22,24,26-nonaene-16-carboxylate

InChIKey

ZHEHVZXPFVXKEY-RUAOOFDTSA-N

INCHI

1S/C32H31N3O5/c1-3-4-5-10-15-39-30(37)32(38)16-23-34-21-13-8-6-11-18(21)25-26-20(17-33-29(26)36)24-19-12-7-9-14-22(19)35(28(24)27(25)34)31(32,2)40-23/h6-9,11-14,23,38H,3-5,10,15-17H2,1-2H3,(H,33,36)/t23-,31+,32+/m0/s1

Isomeric SMILES

CCCCCCOC(=O)[C@@]1(C[C@H]2N3C4=CC=CC=C4C5=C6C(=C7C8=CC=CC=C8N(C7=C53)[C@@]1(O2)C)CNC6=O)O

WGK Germany

3

Molecular Weight

537.6

Reaxy-Rn

8178055

Reaxys-RN_link_address

https://www.reaxys.com/reaxys/secured/hopinto.do?context=S&query=IDE.XRN=8178055&ln=

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Organoheterocyclic compounds
    • Class Indoles and derivatives
      • Subclass Carbazoles
        • Level5 Pyrrolocarbazoles
          • Level6 Indolocarbazoles

• Kingdom: Organic compounds
• Superclass: Organoheterocyclic compounds
• Class: Indoles and derivatives
• Subclass: Carbazoles
• Intermediate Tree Nodes: Pyrrolocarbazoles
• Direct Parent: Indolocarbazoles
• Alternative Parents: Pyrrolo[2,3-a]carbazoles Pyrroloindoles Isoindolones Indoles Benzenoids Tetrahydrofurans Tertiary alcohols Pyrroles Heteroaromatic compounds Secondary carboxylic acid amides Carboxylic acid esters Lactams Oxacyclic compounds Azacyclic compounds Monocarboxylic acids and derivatives Hydrocarbon derivatives Organic oxides Carbonyl compounds Organonitrogen compounds Organopnictogen compounds
• Molecular Framework: Aromatic heteropolycyclic compounds
• Substituents: Indolocarbazole - Pyrrolo[2,3-a]carbazole - Pyrroloindole - Isoindolone - Indole - Isoindoline - Isoindole or derivatives - Benzenoid - Pyrrole - Heteroaromatic compound - Tertiary alcohol - Tetrahydrofuran - Secondary carboxylic acid amide - Carboxamide group - Lactam - Carboxylic acid ester - Azacycle - Oxacycle - Carboxylic acid derivative - Monocarboxylic acid or derivatives - Alcohol - Organic oxide - Organopnictogen compound - Organic oxygen compound - Organic nitrogen compound - Hydrocarbon derivative - Organonitrogen compound - Carbonyl group - Organooxygen compound - Aromatic heteropolycyclic compound
• Description: This compound belongs to the class of organic compounds known as indolocarbazoles. These are polycyclic aromatic compounds containing an indole fused to a carbazole.
• External Descriptors: tertiary alcohol - carboxylic ester - hemiaminal - semisynthetic derivative - gamma-lactam - organic heterooctacyclic compound - indolocarbazole

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Associated Targets(Human)

CHRM4 Tclin Muscarinic acetylcholine receptor M4 (1 Activities)

Discover Target: CHRM4

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

CHRM1 Tclin Muscarinic acetylcholine receptor M1 (1 Activities)

Discover Target: CHRM1

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

Chemical and Physical Properties

• Solubility: Soluble in DMSO, methanol (5 mg/ml), and DMF.
• Sensitivity: Light Sensitive
• Boil Point(°C): 714.96 °C at 760 mmHg
• Molecular Weight: 537.600 g/mol
• XLogP3: 5.100
• Hydrogen Bond Donor Count: 2
• Hydrogen Bond Acceptor Count: 5
• Rotatable Bond Count: 7
• Exact Mass: 537.226 Da
• Monoisotopic Mass: 537.226 Da
• Topological Polar Surface Area: 94.700 Ų
• Heavy Atom Count: 40
• Formal Charge: 0
• Complexity: 1060.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 3
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1

Frequently Asked Questions

What is the purity of this product, and how is it determined?

This product is supplied at ≥97% purity, determined by HPLC. Lot-specific values are stated on the Certificate of Analysis.

What is Moligand??

Moligand? is one of Aladdin Scientific's premium product lines, formulated for high-purity applications across multiple workflows. Compared to standard grades in the same workflow, Moligand? products typically offer tighter specifications, more rigorous QC, and stronger lot-to-lot consistency.

How should this product be stored?

Store at 2–8 °C. Refrigerated storage is required to maintain the specified shelf life.

How is this product shipped?

This product ships chilled on wet ice. Unpack on arrival and transfer it to the storage condition stated above.

What are the CAS number, molecular formula and molecular weight?

The CAS Number is 108068-98-0, the molecular formula is C32H31N3O5, and the molecular weight is 537.6 g/mol. InChIKey ZHEHVZXPFVXKEY-RUAOOFDTSA-N.

What documentation is provided?

Available product documentation, including Certificates of Analysis (COA), Safety Data Sheets (SDS), and specification sheets, is shown in the product document area. Document availability and access follow the current site policy.
