Xantphos - ≥98% , CAS No.161265-03-8

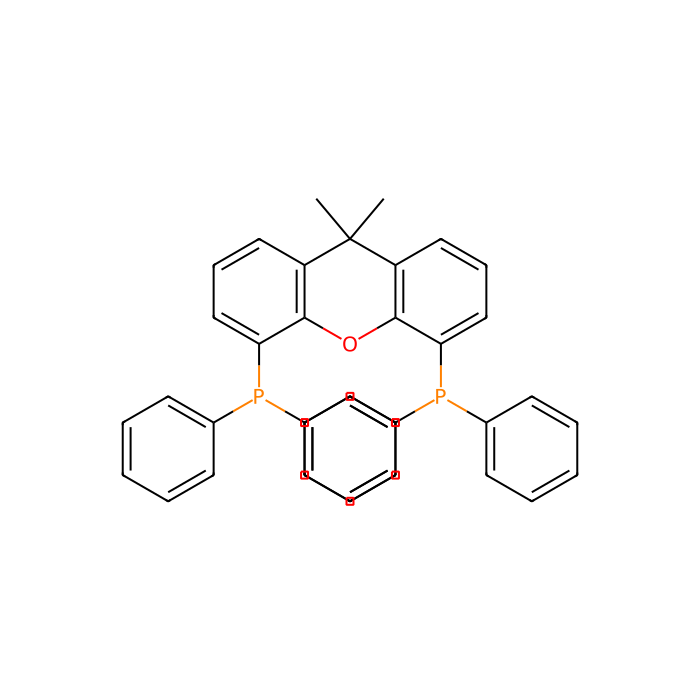

CAS: 161265-03-8 Cat. No.: X111327 Formula: C₃₉H₃₂OP₂ Molecular Weight: 578.62 EC Number: 605-249-4 PubChem CID: 636044

GRADE & PURITY ≥98%

Synonyms

4,5-Bis(diphenylphospheno)-9,9-dimethyl xanthene | dimethyl bisdiphenylphosphinoxanthene | 4,5-Bis(diphenylphosphino)-9,9-dimethyl xanthene | Phosphine, 1,1'-(9,9-dimethyl-9H-xanthene-4,5-diyl)bis[1,1-diphenyl- | [5-(diphenylphosphanyl)-9,9-dimethyl-9H-xa

Storage

Room temperature

Shipped In

Normal

Overview

Xantphos is a bidentate ligand that is employed in various metal-catalyzed reactions, including cross-couplings, Buchwald-Hartwig cross-coupling reactions, C-X bond formation, hydroformylation, Miyaura borylation reaction, Stille coupling, Suzuki-Miyaura coupling, (hetero)arylation, amination, and amidation.
Application
Ligand used in a synthesis of heterocycles by palladium-catalyzed C-N cross coupling of 3-bromothiophenes with 2-aminopyridines. Also used in a ruthenium-catalyzed alkylation of active methylene compounds with alcohols.
Metal chelating ligand for catalysis.

Specifications

Synonyms

4,5-Bis(diphenylphospheno)-9,9-dimethyl xanthene | dimethyl bisdiphenylphosphinoxanthene | 4,5-Bis(diphenylphosphino)-9,9-dimethyl xanthene | Phosphine, 1,1'-(9,9-dimethyl-9H-xanthene-4,5-diyl)bis[1,1-diphenyl- | [5-(diphenylphosphanyl)-9,9-dimethyl-9H-xa

Specifications & Purity

≥98%

Storage

Room temperature

Shipped In

Normal

Purity

≥98%

Names and Identifiers

Pubchem Sid

488190834

Pubchem Sid Url

https://pubchem.ncbi.nlm.nih.gov/substance/488190834

Canonical Smiles

CC1(C2=C(C(=CC=C2)P(C3=CC=CC=C3)C4=CC=CC=C4)OC5=C1C=CC=C5P(C6=CC=CC=C6)C7=CC=CC=C7)C

IUPAC Name

(5-diphenylphosphanyl-9,9-dimethylxanthen-4-yl)-diphenylphosphane

InChIKey

CXNIUSPIQKWYAI-UHFFFAOYSA-N

INCHI

1S/C39H32OP2/c1-39(2)33-25-15-27-35(41(29-17-7-3-8-18-29)30-19-9-4-10-20-30)37(33)40-38-34(39)26-16-28-36(38)42(31-21-11-5-12-22-31)32-23-13-6-14-24-32/h3-28H,1-2H3

Isomeric SMILES

CC1(C2=C(C(=CC=C2)P(C3=CC=CC=C3)C4=CC=CC=C4)OC5=C1C=CC=C5P(C6=CC=CC=C6)C7=CC=CC=C7)C

WGK Germany

3

PubChem CID

636044

Molecular Weight

578.62

Reaxy-Rn

7085968

Taxonomic Classification

Taxonomy Tree

• Kingdom Organic compounds
  • Superclass Benzenoids
    • Class Benzene and substituted derivatives
      • Subclass Phenylphosphines and derivatives

• Kingdom: Organic compounds
• Superclass: Benzenoids
• Class: Benzene and substituted derivatives
• Subclass: Phenylphosphines and derivatives
• Intermediate Tree Nodes: Not available
• Direct Parent: Phenylphosphines and derivatives
• Alternative Parents: Xanthenes Diarylethers Organic phosphines and derivatives Oxacyclic compounds Organopnictogen compounds Hydrocarbon derivatives
• Molecular Framework: Aromatic heteropolycyclic compounds
• Substituents: Triphenylphosphine - Dibenzopyran - Xanthene - Diaryl ether - Benzopyran - 1-benzopyran - Phenylphosphine - Phosphine - Ether - Oxacycle - Organoheterocyclic compound - Organic oxygen compound - Hydrocarbon derivative - Organooxygen compound - Organophosphorus compound - Organopnictogen compound - Aromatic heteropolycyclic compound
• Description: This compound belongs to the class of organic compounds known as phenylphosphines and derivatives. These are compounds containing a phenylphosphine, which consists of phosphine substituent bound to a phenyl group.
• External Descriptors: Not available

Data sources

1. Djoumbou Feunang Y, Eisner R, Knox C, Chepelev L, Hastings J, Owen G, Fahy E, Steinbeck C, Subramanian S, Bolton E, Greiner R, and Wishart DS. ClassyFire: Automated Chemical Classification With A Comprehensive, Computable Taxonomy. Journal of Cheminformatics, 2016, 8:61.

DOI: 10.1186/s13321-016-0174-y

Chemical and Physical Properties

• Solubility: Soluble in organic solvents
• Melt Point(°C): 226-230°C
• Molecular Weight: 578.600 g/mol
• XLogP3: 9.700
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 1
• Rotatable Bond Count: 6
• Exact Mass: 578.193 Da
• Monoisotopic Mass: 578.193 Da
• Topological Polar Surface Area: 9.200 Ų
• Heavy Atom Count: 42
• Formal Charge: 0
• Complexity: 731.000
• Isotope Atom Count: 0
• Defined Atom Stereocenter Count: 0
• Undefined Atom Stereocenter Count: 0
• Defined Bond Stereocenter Count: 0
• Undefined Bond Stereocenter Count: 0
• The total count of all stereochemical bonds: 0
• Covalently-Bonded Unit Count: 1

Frequently Asked Questions

How should this product be stored?

Store at room temperature.

What is the purity of this product?

This product is supplied at ≥98% purity (chemical assay). Lot-specific values are stated on the Certificate of Analysis.

How is this product shipped?

This product ships under standard ambient conditions. No temperature-controlled packaging is required.

What are the CAS number, molecular formula and molecular weight?

The CAS Number is 161265-03-8, the molecular formula is C39H32OP2, and the molecular weight is 578.62 g/mol. InChIKey CXNIUSPIQKWYAI-UHFFFAOYSA-N.

What documentation is provided?

Available product documentation, including Certificates of Analysis (COA), Safety Data Sheets (SDS), and specification sheets, is shown in the product document area. Document availability and access follow the current site policy.
