Name: SB203580 - Moligand™, 10mM in DMSO , Inhibitor of cyclin G associated kinase;Inhibitor of mitogen-activated protein kinase 11;Inhibitor of mitogen-activated protein kinase 14, CAS No.152121-47-6, Inhibitor of cyclin G associated kinase;Inhibitor of mitogen-activated protein kinase 11;Inhibitor of mitogen-activated protein kinase 14
Brand: Aladdin Scientific
SKU: S407781
Availability: InStock

SB203580 - Moligand™, 10mM in DMSO , Inhibitor of cyclin G associated kinase;Inhibitor of mitogen-activated protein kinase 11;Inhibitor of mitogen-activated protein kinase 14, CAS No.152121-47-6, Inhibitor of cyclin G associated kinase;Inhibitor of mitogen-activated protein kinase 11;Inhibitor of mitogen-activated protein kinase 14

CAS: 152121-47-6 Cat. No.: S407781 Formula: C₂₁H₁₆FN₃OS Molecular Weight: 377.43 EC Number: 688-252-3 PubChem CID: 176155

Overview Specifications Names and Identifiers Documentation Advanced Data Associated Targets(Human) Certificates (CoA,COO,BSE/TSE and Analysis Chart) Chemical and Physical Properties Documents & Articles Citations of This Product Solution Calculators Reviews

🧪

Why this grade

Moligand™, 10mM in DMSO Moligand™ for sensitive chromatographic and analytical workflows requiring minimal baseline interference.

🌡

Storage & shipping

Store at -80°C Ships Dry ice packs + Cold packs Check lot-specific COA for exact specifications.

📋

Quality documents

SDS, COA, datasheet, and spec sheet available for download. Lot-specific COA accessible via lot number lookup.

📚

Literature proof

Cited in 7 peer-reviewed publications across chromatography, organic synthesis, and cross-coupling reactions.

Overview

Information

In vitro

SB203580 inhibits the IL-2-induced proliferation of primary human T cells, murine CT6 T cells, or BAF F7 B cells with an IC50 of 3–5 μm. SB203580 also inhibits IL-2-induced p70S6 kinase activation, although the concentration required is slightly higher with an IC50 above 10 μm. SB203580 also inhibits the activity of PDK1 in a dose-dependent manner with an IC50 in the 3–10 μm range. SB203580 inhibits p38-MAPK stimulation of MAPKAPK2 with an IC50 of approximately 0.07 μM, whereas inhibits total SAPK/JNK activity with an IC50 of 3–10 μM. SB203580 at higher concentrations activates the ERK pathway, which subsequently enhances NF-κB transcriptional activity. SB203580 induces autophagy in human hepatocellular carcinoma (HCC) cells.

In vivo

SB203580 protects pig myocardium against ischemic injury in an in vivo model. SB203580 is effective to prevent and treat the disease in MRL/lpr mice model of Systemic lupus erythematosus (SLE).
Cell Data

cell lines：

Concentrations：0–30 μM

Incubation Time：1 hour

Powder Purity:≥99%

Specifications

Synonyms

RWJ 64809, PB 203580

Specifications & Purity

Moligand™, 10mM in DMSO

Biochemical and Physiological Mechanisms

SB203580 (RWJ 64809, PB 203580) is a p38 MAPK inhibitor with IC50 of 0.3-0.5 μM in THP-1 cells, 10-fold less sensitive to SAPK3(106T) and SAPK4(106T) and blocks PKB phosphorylation with IC50 of 3-5 μM. SB203580 induces mitophagy and autophagy.

Storage

Store at -80°C

Shipped In

Dry ice packs + Cold packs

This product requires cold chain shipping. Ground and other economy services are not available.

Grade

Moligand™

Action Type

INHIBITOR

Mechanism of action

Inhibitor of cyclin G associated kinase;Inhibitor of mitogen-activated protein kinase 11;Inhibitor of mitogen-activated protein kinase 14

Names and Identifiers

Isomeric SMILES

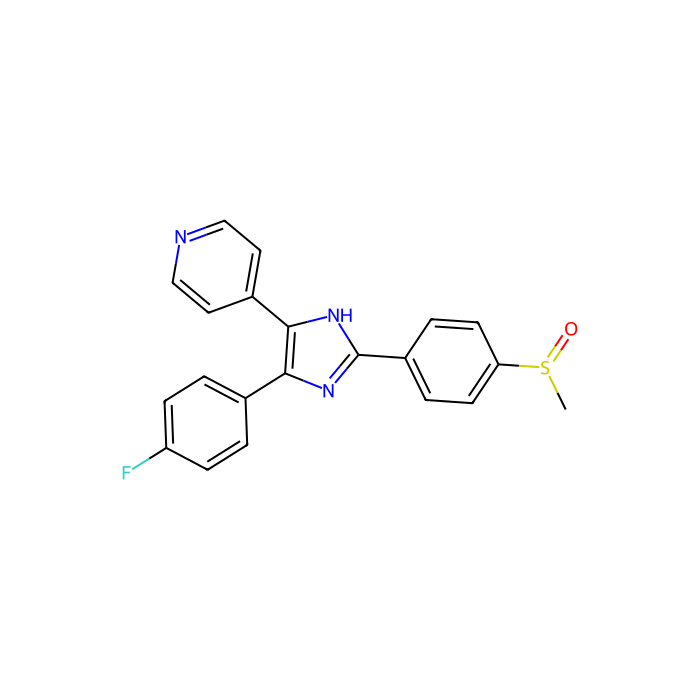

CS(=O)C1=CC=C(C=C1)C2=NC(=C(N2)C3=CC=NC=C3)C4=CC=C(C=C4)F

WGK Germany

PubChem CID

176155

Molecular Weight

377.43

Documentation

📋 Safety Data Sheet (SDS)

Comprehensive hazard, handling, storage, and regulatory compliance document.

<<<<<<< HEAD Download SDS → ======= Download SDS → >>>>>>> release248-p3

✅ Certificate of Analysis (COA)

Lot-specific quality data. Enter your lot number to retrieve the exact COA.

Look up COA →

📊 Datasheet

Quick-reference summary of product specifications and applications.

View datasheet →

🔬 Specification Sheet

Full quality attributes and acceptance criteria for this grade.

View spec sheet →

Advanced Data

Associated Targets(Human)

CYP1A2 Tchem Cytochrome P450 1A2 (1 Activities)

Discover Target: CYP1A2

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

CYP2C19 Tchem Cytochrome P450 2C19 (2 Activities)

Discover Target: CYP2C19

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

CYP3A4 Tclin Cytochrome P450 3A4 (1 Activities)

Discover Target: CYP3A4

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

CYP2C9 Tchem Cytochrome P450 2C9 (1 Activities)

Discover Target: CYP2C9

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

GAK Tchem Cyclin-G-associated kinase (3 Activities)

Discover Target: GAK

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

TBXAS1 Tchem Thromboxane-A synthase (1 Activities)

Discover Target: TBXAS1

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

RIPK2 Tchem Receptor-interacting serine/threonine-protein kinase 2 (4 Activities)

Discover Target: RIPK2

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

MAPK10 Tchem Mitogen-activated protein kinase 10 (1 Activities)

Discover Target: MAPK10

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

ALOX5 Tclin Arachidonate 5-lipoxygenase (1 Activities)

Discover Target: ALOX5

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

GCGR Tclin Glucagon receptor (1 Activities)

Discover Target: GCGR

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

P2RX7 Tchem P2X purinoceptor 7 (1 Activities)

Discover Target: P2RX7

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

NLK Tchem Serine/threonine-protein kinase NLK (2 Activities)

Discover Target: NLK

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

MAPK11 Tchem Mitogen-activated protein kinase 11 (2 Activities)

Discover Target: MAPK11

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

MAPK14 Tchem Mitogen-activated protein kinase 14 (18 Activities)

Discover Target: MAPK14

Activity Type	Activity Value -log(M)	Mechanism of Action	Activity Reference	Publications (PubMed IDs)

Certificates (CoA,COO,BSE/TSE and Analysis Chart)

C of A & Other Certificates(BSE/TSE, COO):

Analytical Chart:

Chemical and Physical Properties

Refractive Index	1.71
Boil Point(°C)	615.6° C
Melt Point(°C)	280.73°C
